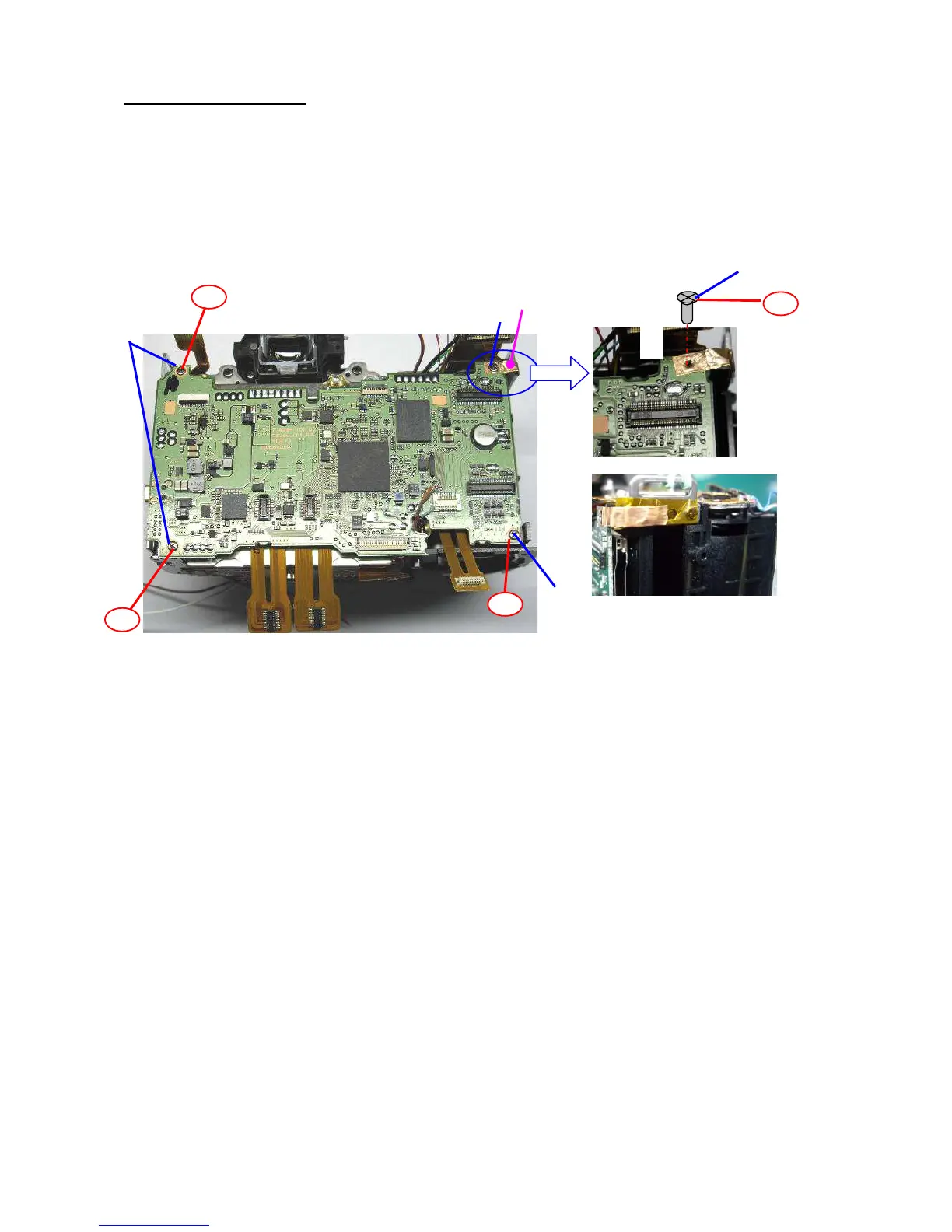

14. 0-T100 (Main P.C.B)
①Install T100 with avoiding pinch lead wires and flex.
②CNL-D1.7x2.5 x2
③TY-CNL-D1.7x3.5
④Affix T67 --- If T67 is new part., make a hole for screw hole.
⑤CNL-D1.7x2.5
⑥Apply screw lock
SL
②

③

④

⑤
⑤
④

SL
SL
SL
