77420 - 42/107 -

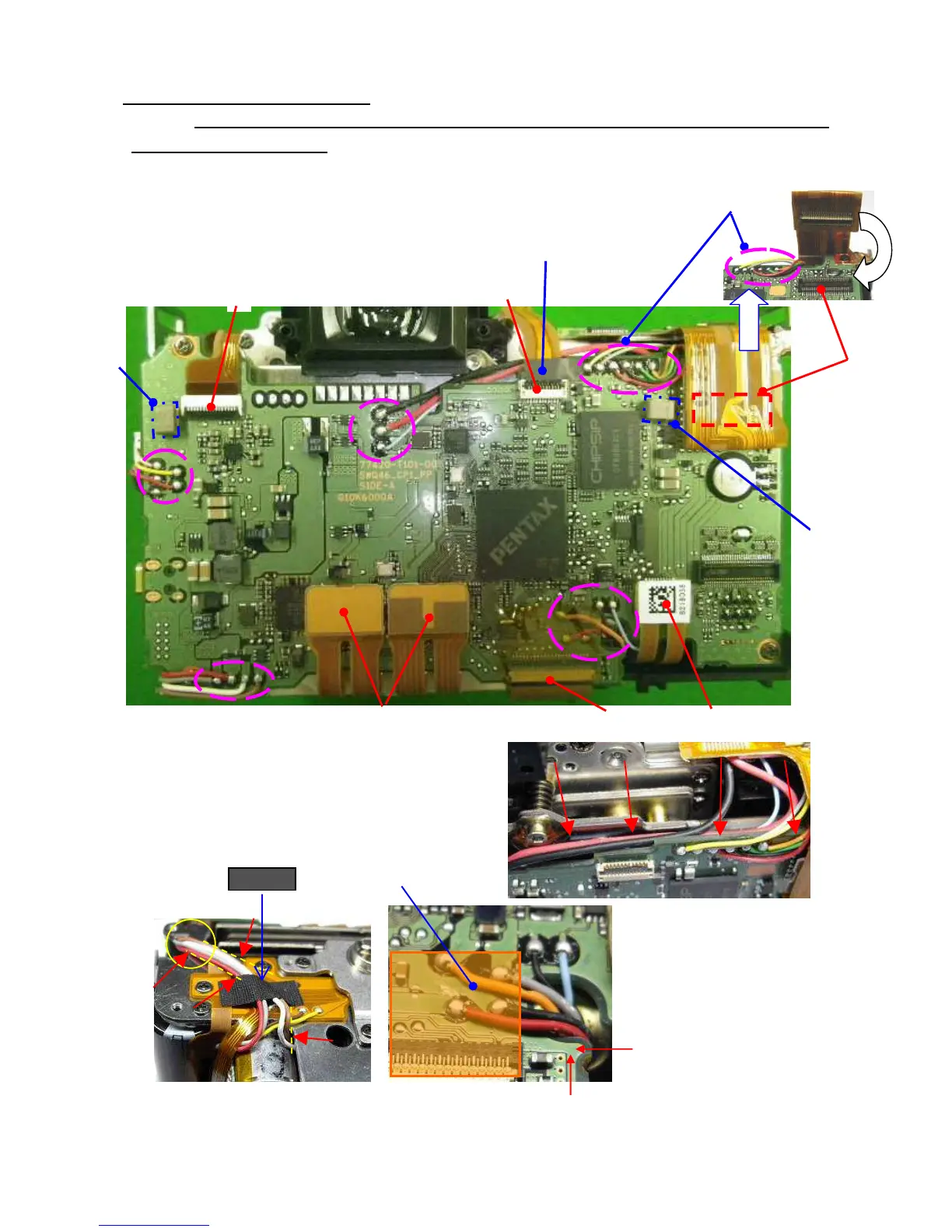

15. Soldering lead wires for T100
[Caution] The flex from SR block should be taken care (no stress, no bend), otherwise it will affect the
performance of SR function.
①Solder 6 lead wires.
②Connect flex (4 positions: Plug-in)
③Connect flex (3 positions: Flip lock)
④Affix A38 PVF tape (3.8x10)
⑤Solder 18 lead wires.
⑥Arrange lead wire by BT (6x15)
⑦Affix A61 PI tape (13x17)
⑧Confirm to A26 (x2)
⑥
To Next Page
