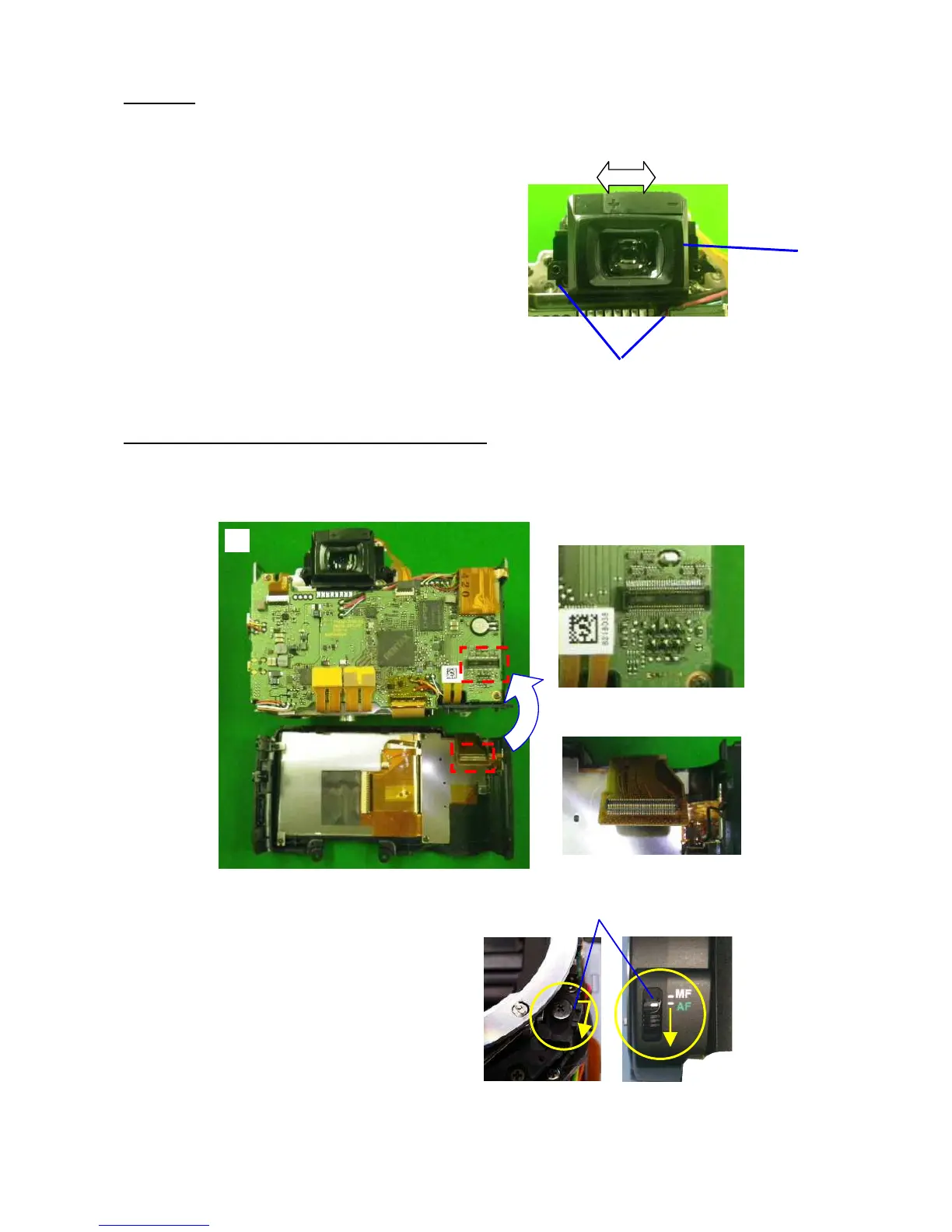

①M311 --- Engage dioptor lever.
②CNL-D1.7x3.0 x2
③[Confirm] When move diopter adjustment lever,
viewfinder must be engaged.
18. A150 and A201 (Front cover and Back cover)
① Connect T920 flex (Plug-in)
② Install A201 from connect side while opening the connecter cover as shown in figure.
③ Set the AF mode lever to [AF] both of body and A157.
④ Solder 2 lead wire (To T750 flex)
⑤ A150
③
To Next Page
