Pentax 77420 - Page 46

77420 - 45/107 -

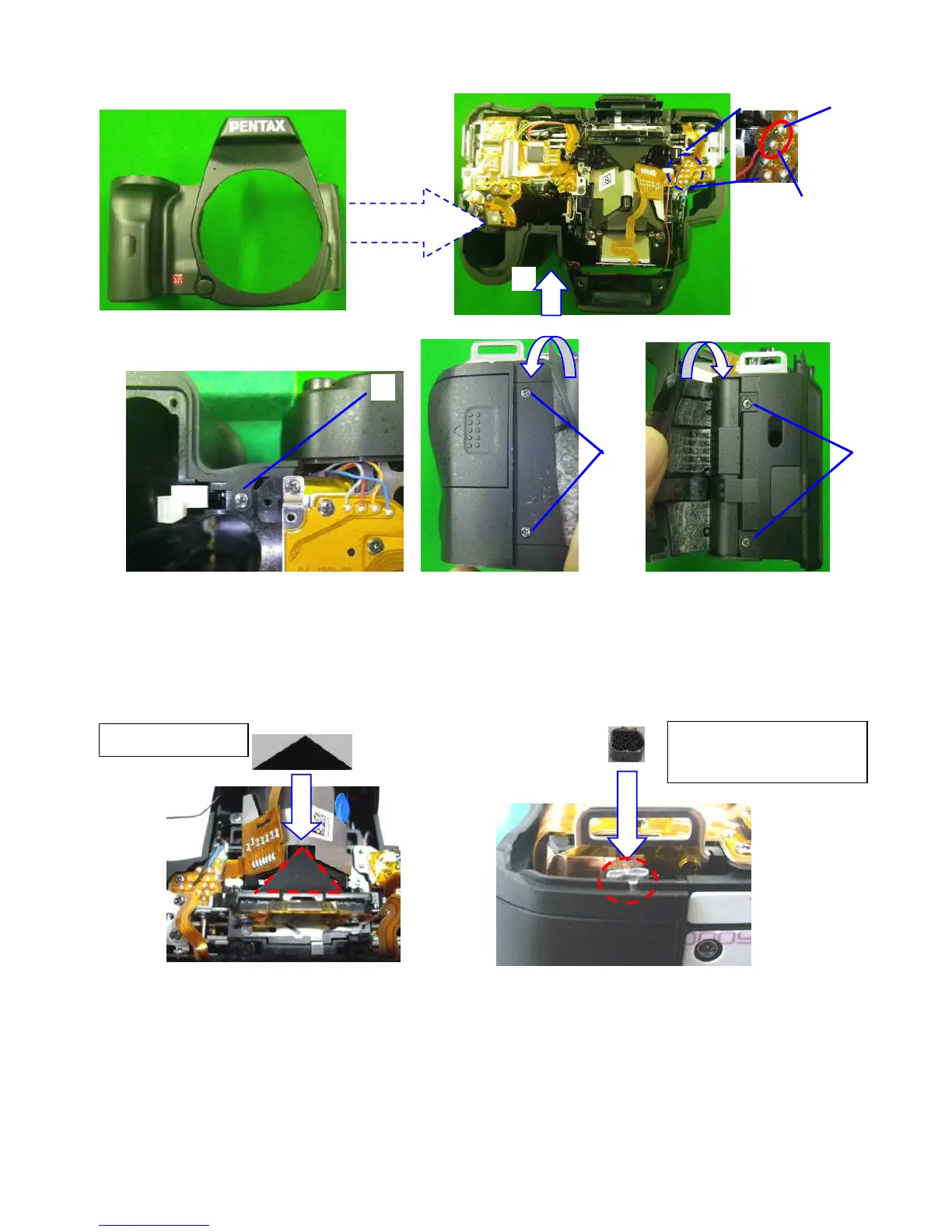

⑥ Bottom of the camera, Install screw (TY-CNL-D 1.7x4.0)
⑦ Peel off A151 grip rubber, Install screw (TY-CNL-D 1.7x4.5 x2)
⑧ Peel off A161 grip rubber, install screw (CNL-D 1.7x4.0 x2)
⑨Confirm the installation condition of each cover. (Grip rubber, other)
⑩Confirm M16 and A26 position.
Red
⑤

Black
⑥

⑧

⑦

④

M16
A26
Left side,
Between A201 and A16
Upper, J100 part
