19. A301 (Top cover)

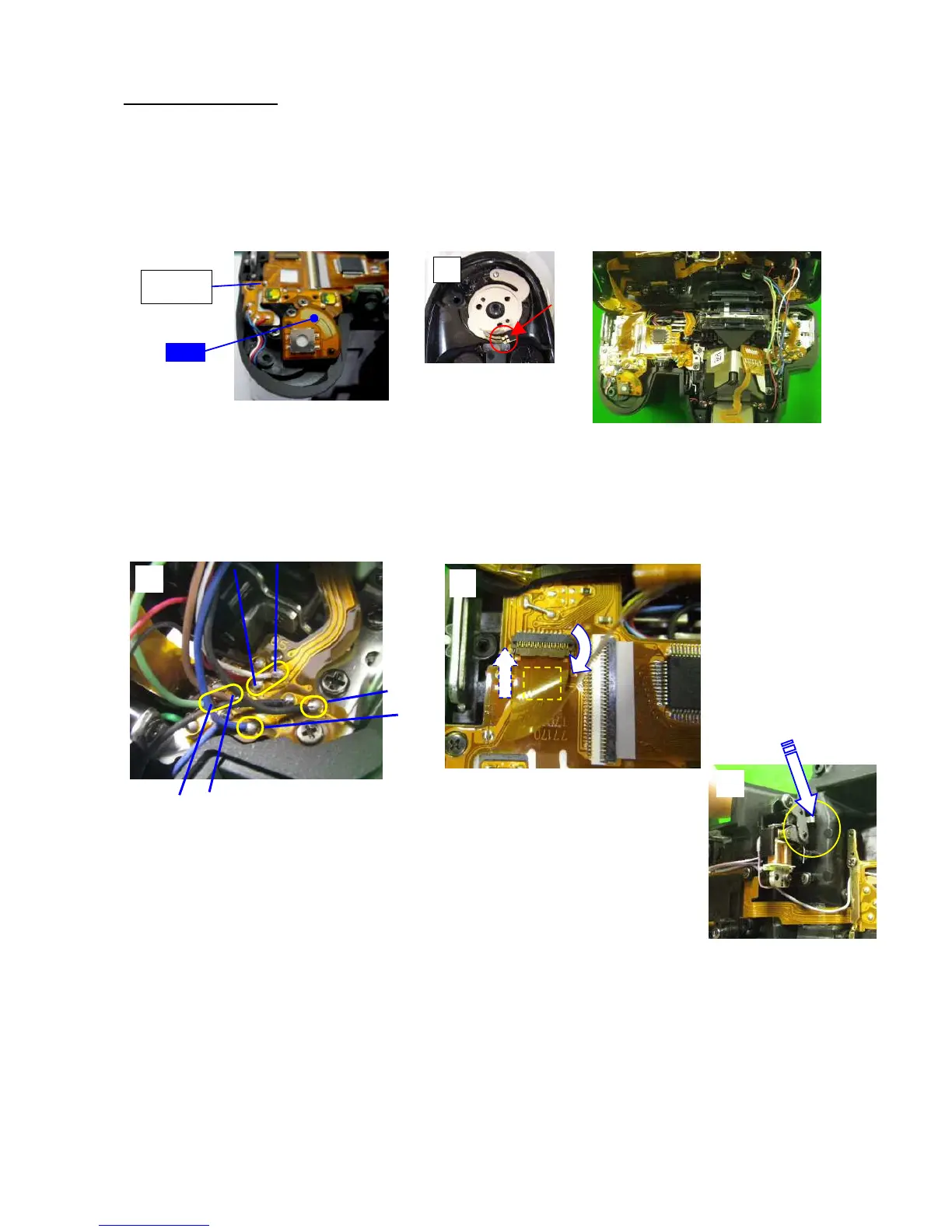

* Confirm that the top cover parts are completely installed and ready for installation.
①If main switch land is soldered, unsoldered, unsolder main switch land.
②Apply G151 on main switch contact.
③Confirm that there is no dust or no damage on contact. The contact must be the same height.
④Solder 6 lead wires from A301.
⑤Connect flex (Flip lock) the fix DT (5x5)
⑥ Pop-up the flash by releasing the lever as shown in figure.
（following page）
③
To Next Page
