- 12 -
5 点検と調整
5.1 円型気泡管
1) 整準ネジで調整して、気泡を中央に合わせます。

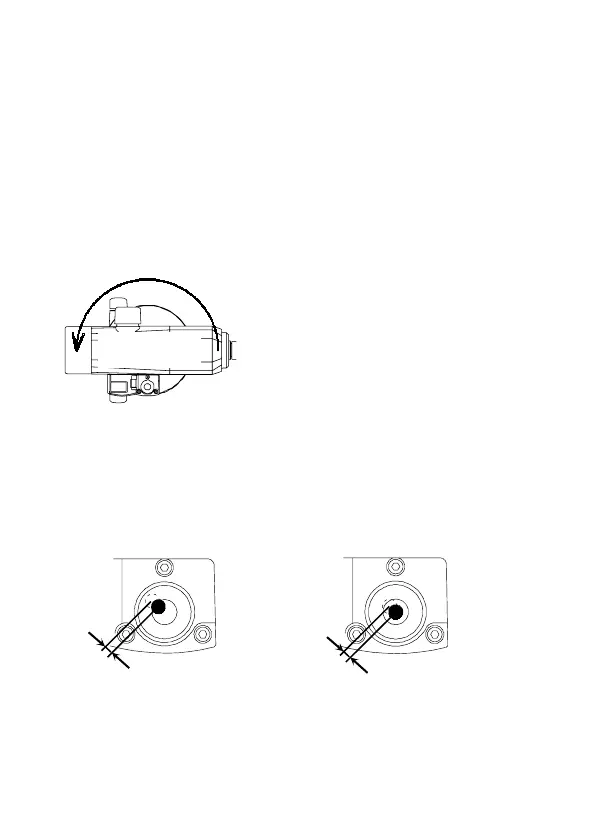

2) レベルを 180°回転させます(図 5.1)。
5.1
3) 円型気泡管の泡が中央から移動した場合は、整準ネジを操作し
て、気泡が移動した量の半分だけ中央へ戻します(図 5.2
4) 残りの半分は気泡管調整ネジを六角レンチで回し、気泡を正し
く中央へ戻します( 5.3)。
5.2 5.3
180°
1/2 整準ネジ
1/2 気泡調整ネ
