5 Check and adjustment
5.1 Circular level
1）Turning the leveling foot screw (7) until the bubble be central.

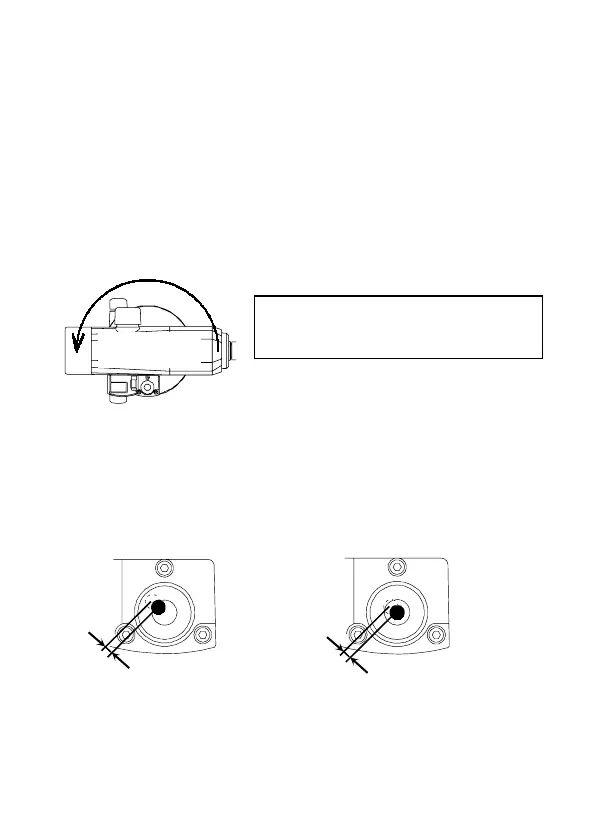

2）Rotate the instrument 180° ( Fig.5.1 ).
Fig.5.1
3）Compensate for half of the shift by adjusting the leveling foot screws (7)
( Fig.5.2 ).
4）Eliminate the remaining half shift by using the hexagonal wrench to adjust
the circular level adjusting screws (5) ( Fig.5.3 ).
Fig.5.2 Fig.5.3
It expresses normal if the bubble is in the
center. If off center, adjusting as follows.
180°
1/2 ： Leveling screws
1/2 ： Adjusting screws
