25

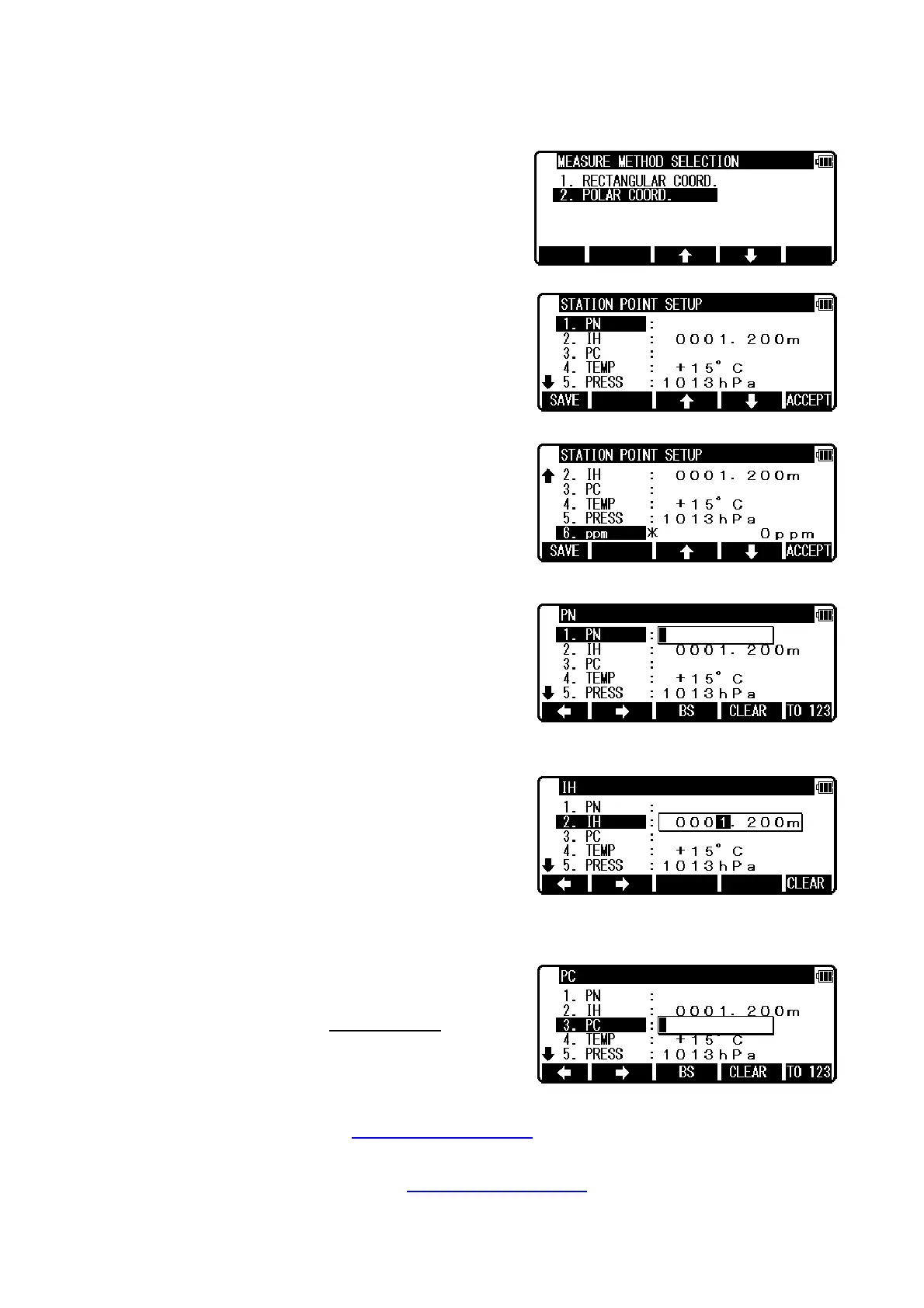

4.6 Station setup [ By Polar Coordinates]
The same Point Name of the plural polar points can be saved.
Press [F2][MEAS] of the PowerTopoLite screen to view
the MEASURE METHOD SELECTION screen.
Select 2. POLAR COORD. and press [ENT] to view the
STATION POINT SETUP screen.
The
/
mark is used to scroll up / down. 6. PC is
viewed by .
4.6.1 Point name, PN, input
Press [ENT] to view the PN screen.
4.6.2 IH, TEMP, PRESS, ppm and PC input
Input IH value.
Press [ENT].
Input the PC.
Press [ENT] to view and input the PC, Point code, screen.
If PointCode exists, you can easily select them from the
list or edit one of them after pressing the [ENT]. For using
Point Code List, please refer to “4.4. Point Code
”.
If “PROCESS TYPE” is selected in “Action method selection
”, the inputted point data will be stored
in the memory with [SAVE]. Then the panel “STATION POINT H.ANGLE SETUP” will be displayed
without pressing [ACCEPT].
But, if “STRUCTURE TYPE” is selected in “Action method selection
”, it is necessary to press
[ACCEPT] to proceed next panel.
