80
Closed traverse
Please measure the start point and press [ENT] at the last corner point.
Note
Don’t use the same point name ( PN ) for start point when you measure the start point from the last
corner point.
For example, change “ T1 ” to “ T1-1 “ etc.
Open traverse
You do not need to measure the corner point by pressing [ENT] for calculation at the last corner
point.
The closing errors are not calculated.

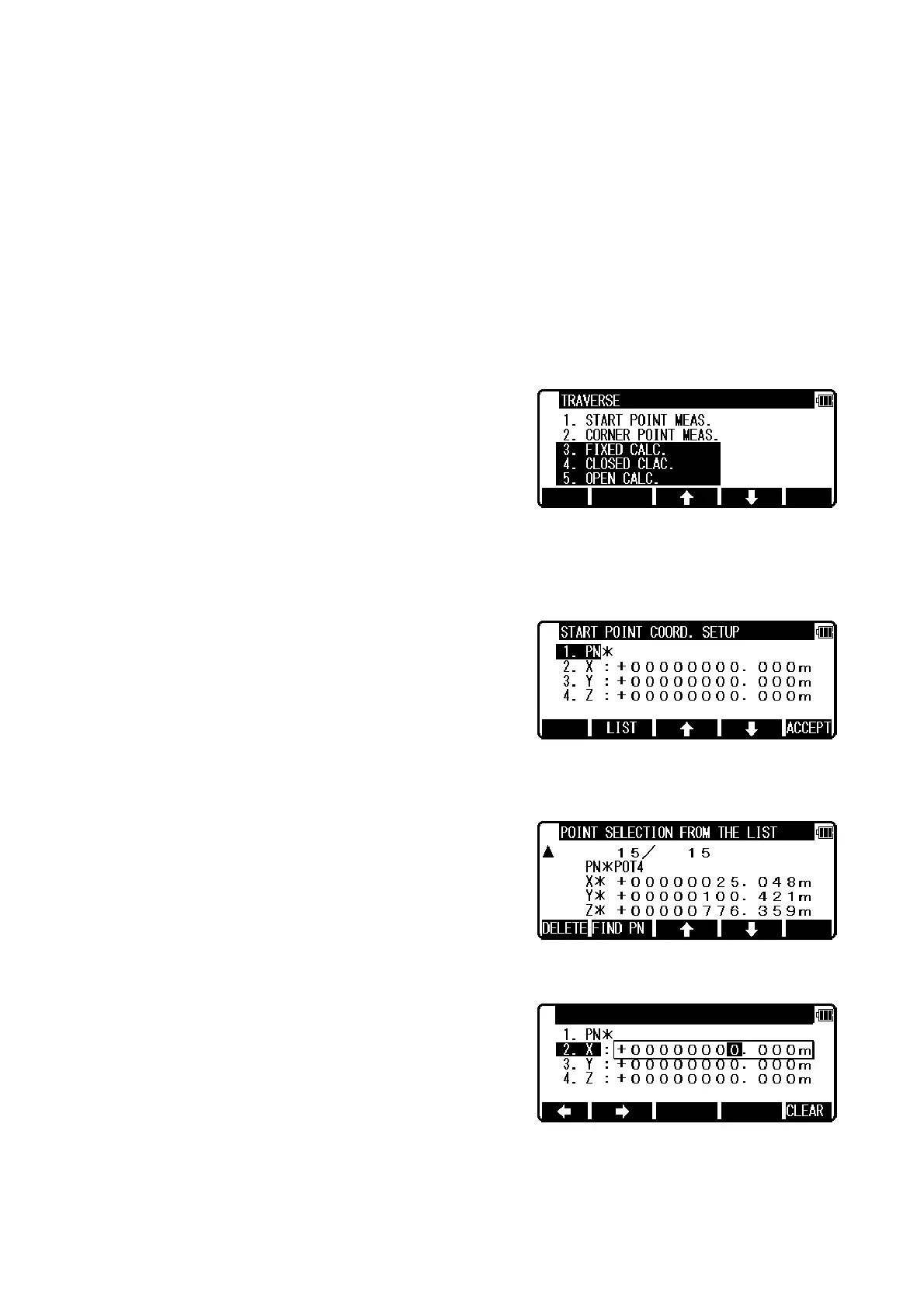

11.3 Calculation
Select “3.FIXED CALC.” or ”4. CLOSED CALC.” or ”5.OPEN CALC.” to calculate the traverse route.
Press [ENT] to view the START POINT COORD. SETUP screen.
Start point coordinates setup
(Input the PN, Coordinates and PC of the Start point.)
z [LIST] key
All the stored points can be displayed as follows by pressing [F2][LIST].
Press [F2][LIST] to view the POINT SELECTION FROM THE LIST screen.
Press [ENT] to open the X coordinate input screen.
Input your desired value by pressing each keys and press [ENT] to go Y coordinate.
START POINT COORD.SETUP
To Next Page
