24.9 Grouped Networks

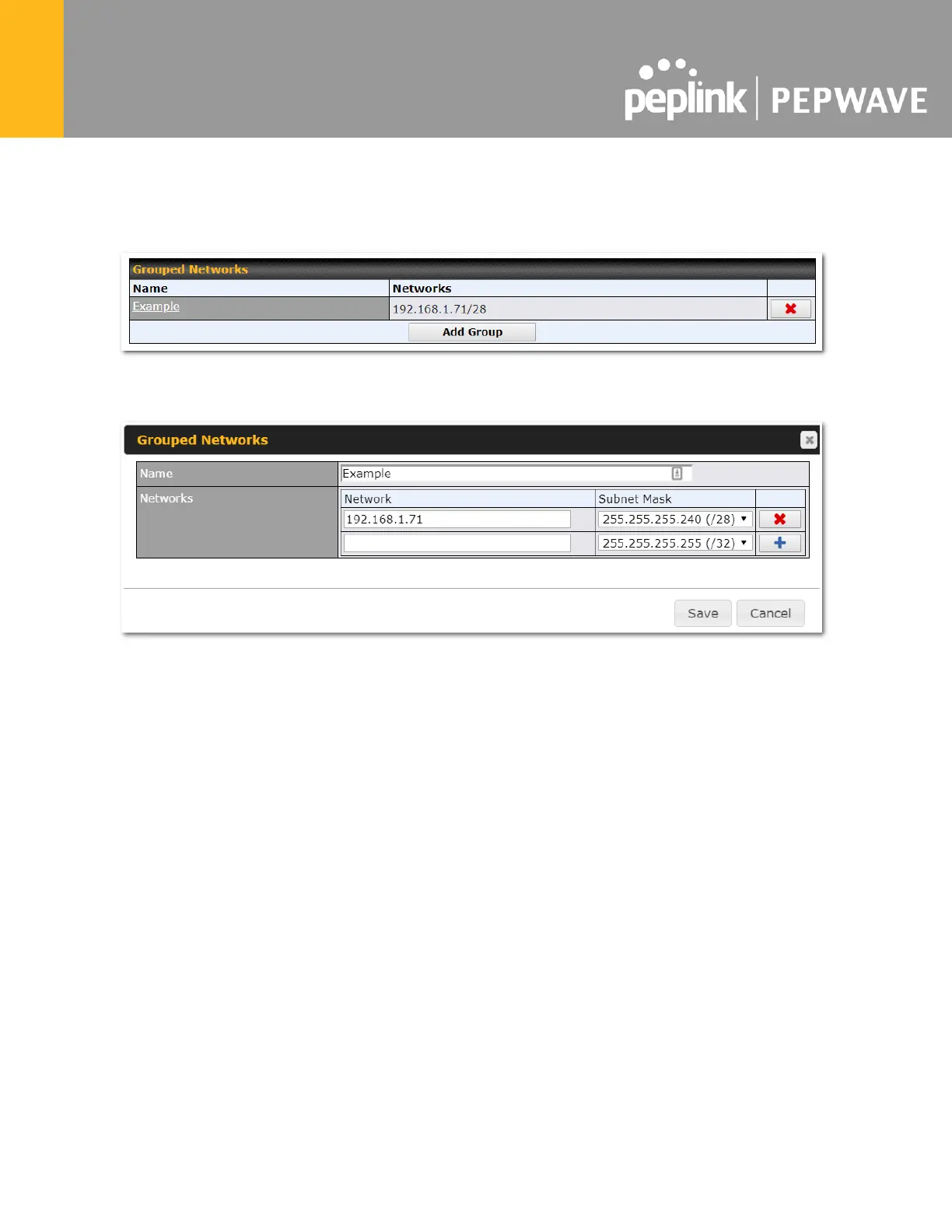

Advanced > Grouped Networks allows to configure destination networks in grouped format.

Select Add group to create a new group with single IPaddresses or subnets from different

VLANs.

The created network groups can be used in outbound policies, firewall rules.

https://www.peplink.com

236
