5.4 PDX Accessory Kit Installation Guide

5.4.1 Battery Set appearance

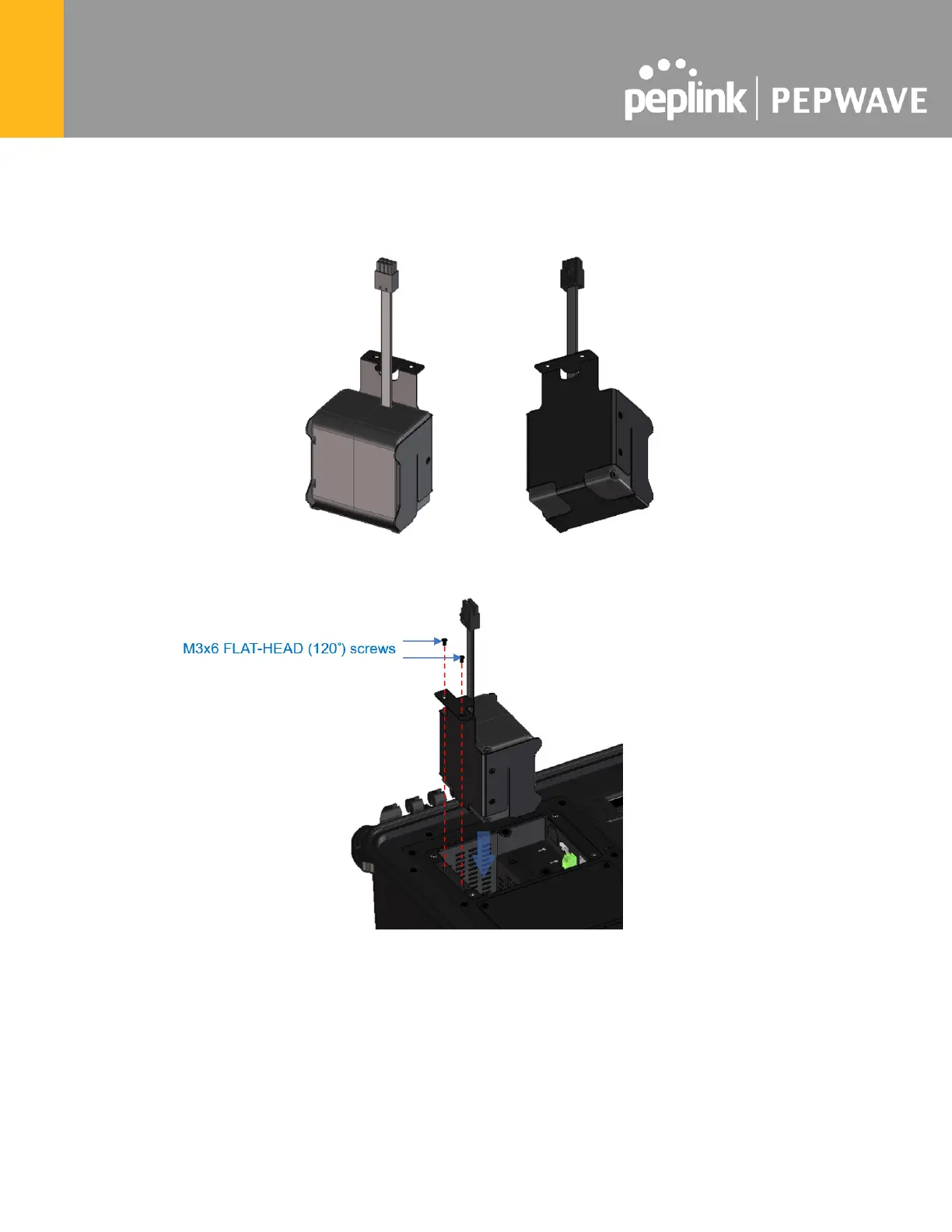

● Step 1: Lock the battery set in the slot with 2 pcs M3 screws.

● Step 2: Plug power cable into the socket
