K-System – Isolated Barriers
Technical Specifications
DOCT-0187Y 2023-12
49

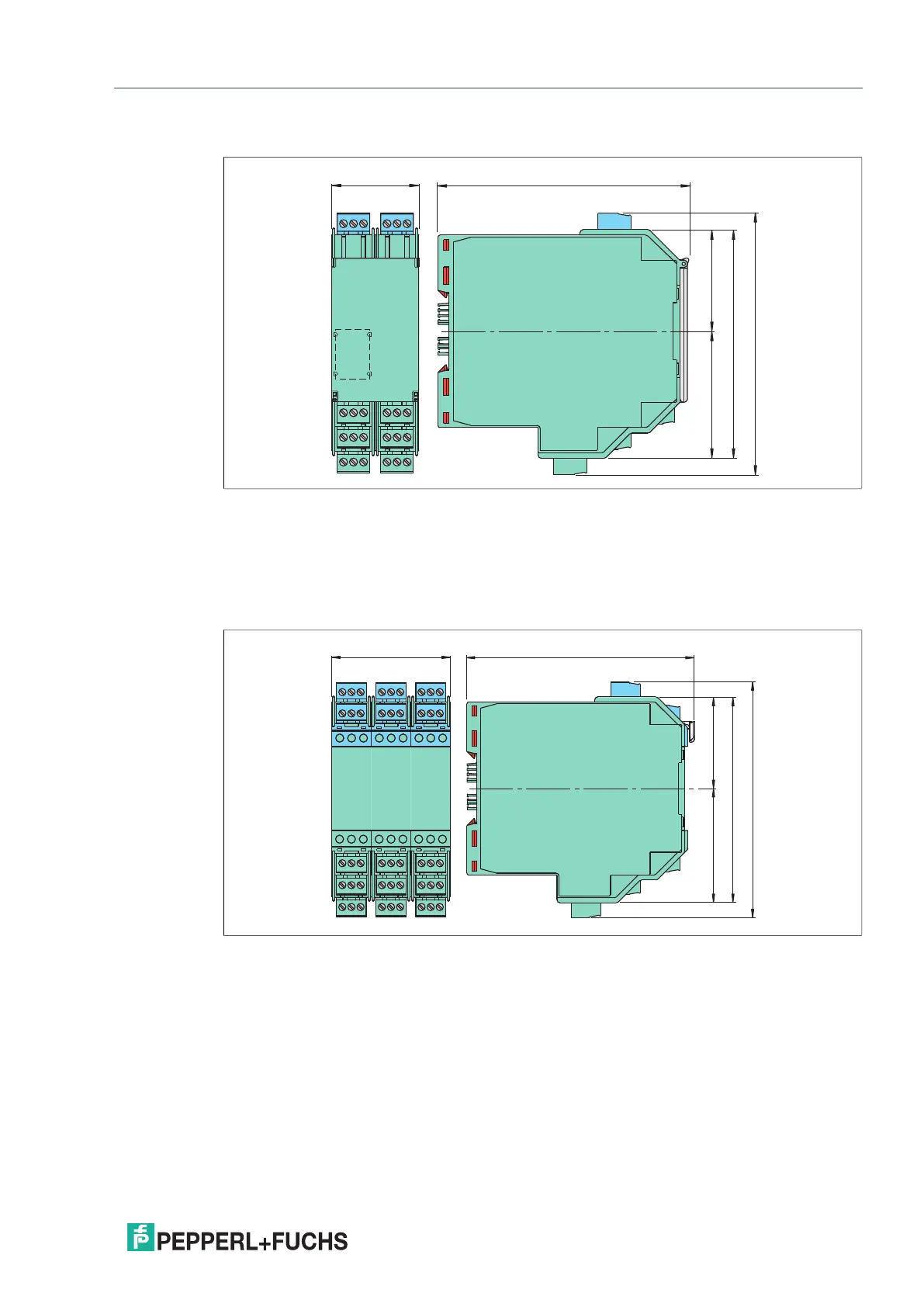

Figure 7.5 Dimensions (W x H x D)
Device with screw terminals: 40 x 119 x 115 mm (1.6 x 4.7 x 4.5 inch)
Device with screw terminals and test sockets: 40 x 124 x 115 mm (1.6 x 4.9 x 4.5 inch)
Device with spring terminals: 40 x 131 x 115 mm (1.6 x 5.2 x 4.5 inch)
Number of terminal blocks max. 10
Figure 7.6 Dimensions (W x H x D)
Device with screw terminals: 60 x 119 x 115 mm (2.4 x 4.7 x 4.5 inch)
Device with screw terminals and test sockets: 60 x 124 x 115 mm (2.4 x 4.9 x 4.5 inch)
Device with spring terminals: 60 x 131 x 115 mm (2.4 x 5.2 x 4.5 inch)
Number of terminal blocks max. 15
Housing Type C2
Housing Type D2
40 mm
115 mm
46 mm58 mm
119 mm
104 mm
60 mm
115 mm
46 mm58 mm
119 mm
104 mm
