5 Connections, Displays and Controls
5.1 Device Schematics
The following are found on the front of the AS-i/Profibus gateway (see diagram be-
low):
1. Connection terminals for the AS-i circuit, also used for the power supply
2. A nine pin SUB-D connector as a Profibus-interface (see chapter 4.5),
3. 7 LEDs
4. A four position, seven section display for indicating the gateway's operating status
5. 2 buttons for projecting the gateway.

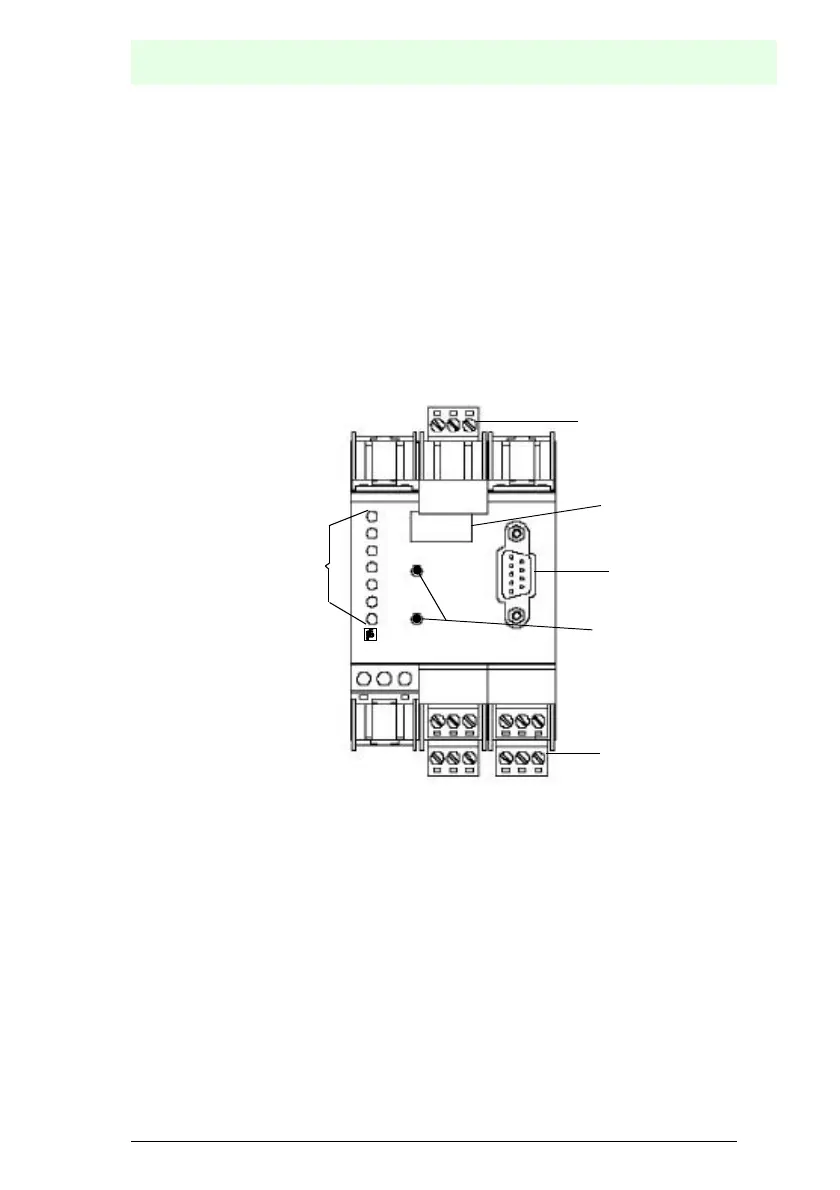

The following diagram provides the dimensions of the AS-i/PROFIBUS-gateway.
1
VAG-PB-KF-R4
19
28
20
21
29
30 31 32
33 34 35 36
22 23 24 25
26
27
RS485
1 2 3
7
8
9
POWER
PB active
CONFIG ERR
U ASI
ASI active
PRG ENABLE
PRJ MODE
5
3
4
2
1
