The two buttons have the following functions:
mode Used to switch between the projection mode and the protected oper-
ating mode and to store the actual AS-i configuration as the reference
configuration.
set Selection and storage of an AS-i slave address.
5.3 Mounting and Connections
5.3.1 Mounting
The KF… design of the gateway can be mounted on a 35 mm DIN rail in accordance
with EN 50022 and facilitates electrical connection through the "Power Rail". It is also
possible to use the more conventional and expensive method of cable connections to
terminals with this design.

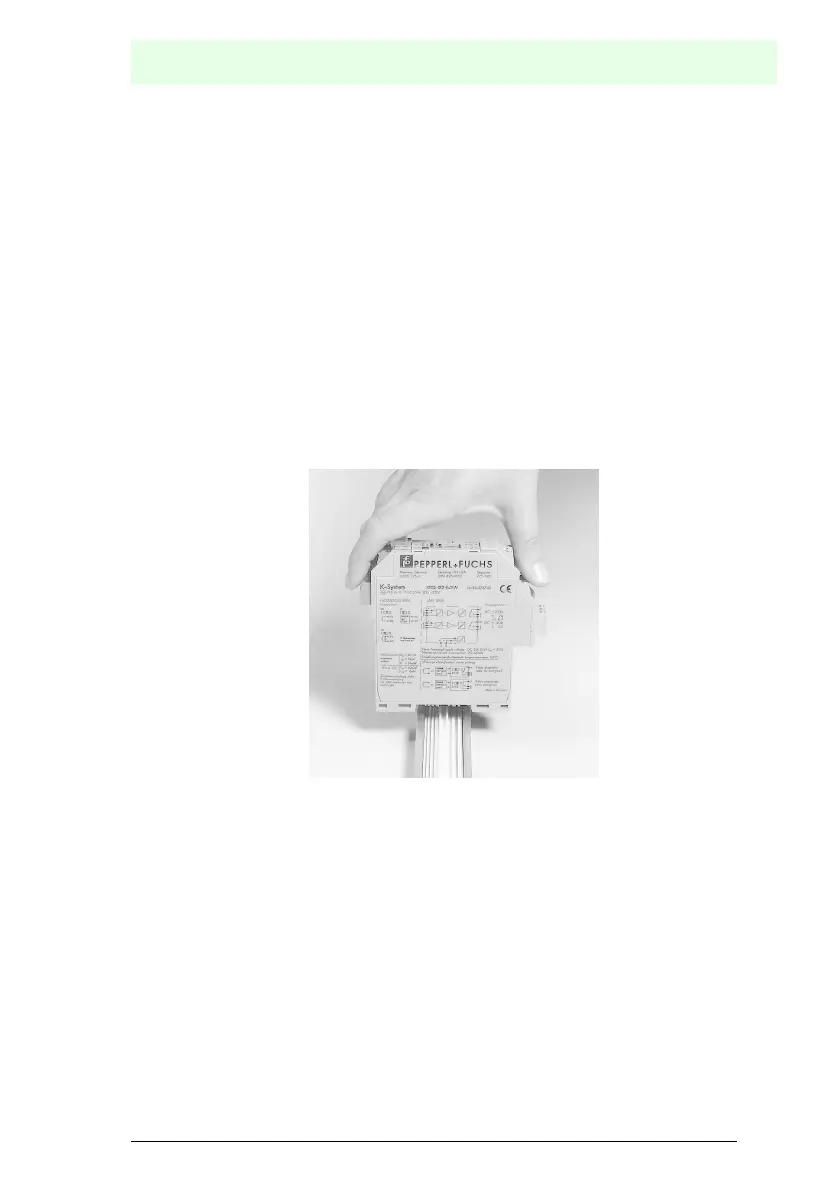

The gateway is snapped directly onto the DIN rail. When using the power rail, an elec-
trical connection is automatically made (to the AS-i Bus) by snapping the gateway
onto the rail leads..
5.3.2 Connection via the Power Rail
The PR05 power rail is an insert for the DIN rail in accordance with EN 50 022. The
UPR 05 is delivered with the appropriate DIN rail.
The 5 pin version of the power rail must be used during the establishment of AS-in-
terface circuits. Two of the five power rails make up the AS-i bus.
