AS-i/PROFIBUS Gateway
Accessories for Putting AS-i into Operation and Test Tools
Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany
Pepperl+Fuchs Group · Tel.: Germany (621) 776-0 · USA (330) 4253555 · Singapore 7799091 · Internet http://www.pepperl-fuchs.com
issue date 12.10.1999
45
9 Accessories for Putting AS-i into Operation and Test Tools
The AS-i circuit on the AS-i/Profibus Gateway can be put into operation with the com-
fortable Windows software AS-i Control Tools. This software communicates with the
AS-i/Profibus Gateway by means of the Profibus converter, which converts the
RS232-signals of the PC to Profibus.
The Profibus DP Master Simulator is recommended for testing the gateway. With the
Profibus DP Master Simulator the AS-i/Profibus Gateway can be put into operation
with or without GSD-file. The user parameter string that is needed for advanced mode
or professional mode can be edited and tested. The Profibus DP Master Simulator
can also be used as a Profibus converter. Furthermore the Profibus DP Master Sim-
ulator can be used for putting any Profibus-DP slave into operation which is very use-
ful for diagnostic purposes.
9.1 Windows Software AS-i Control Tools
The Windows software AS-i Control Tools enables you to configure the AS-i circuit in
a very comfortable manner.
1. For that purpose plug in a Bihl+Wiedemann Profibus converter to the D-SUB-con-
nector of the AS-i/PROFIBUS Gateway and connect the device with a fully covered
cable to the serial interface of your PC.
2. Start the AS-i Control Tools.

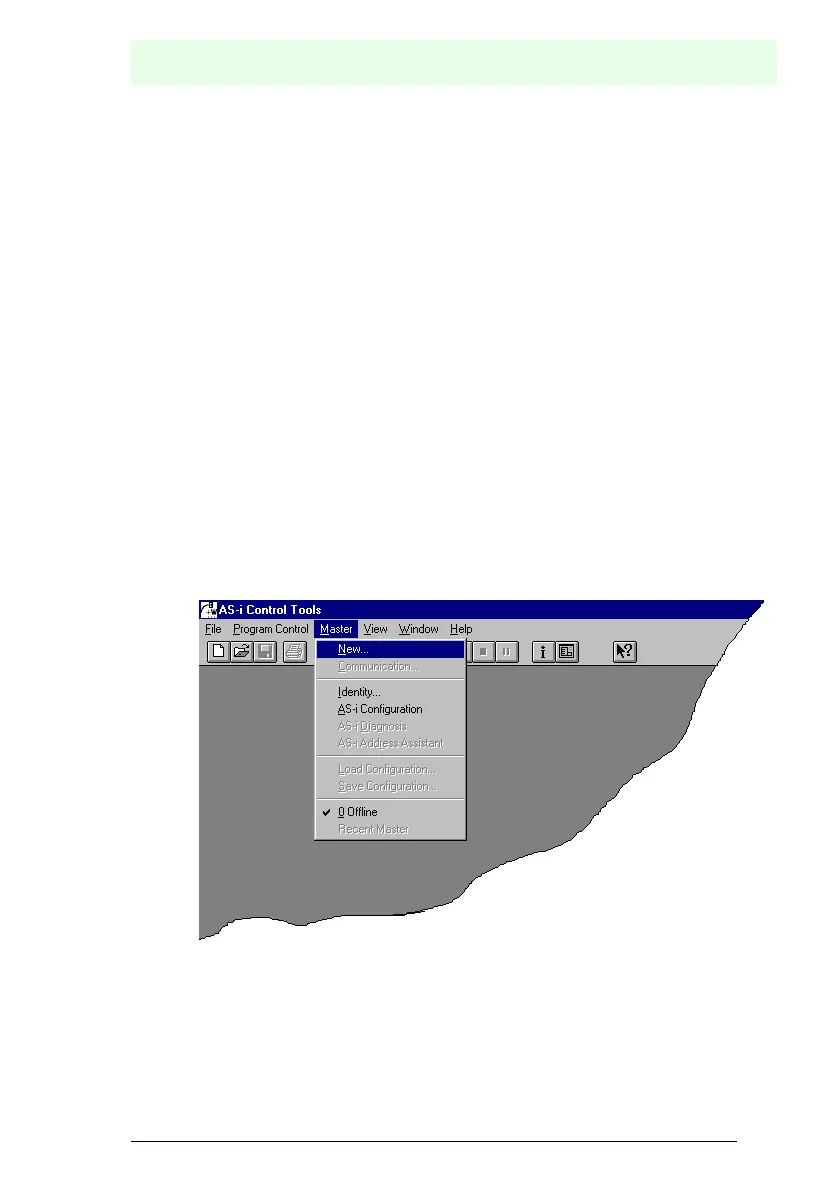

3. Call the command Master | New.
4. Choose Profibus as protocol.
