AS-Interface
Appendix: Putting Profibus into Operation with a Siemens S5
Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany
Pepperl+Fuchs Group · Tel.: Germany (621) 776-0 · USA (330) 4253555 · Singapore 7799091 · Internet http://www.pepperl-fuchs.com
issue date 12.10.1999
60

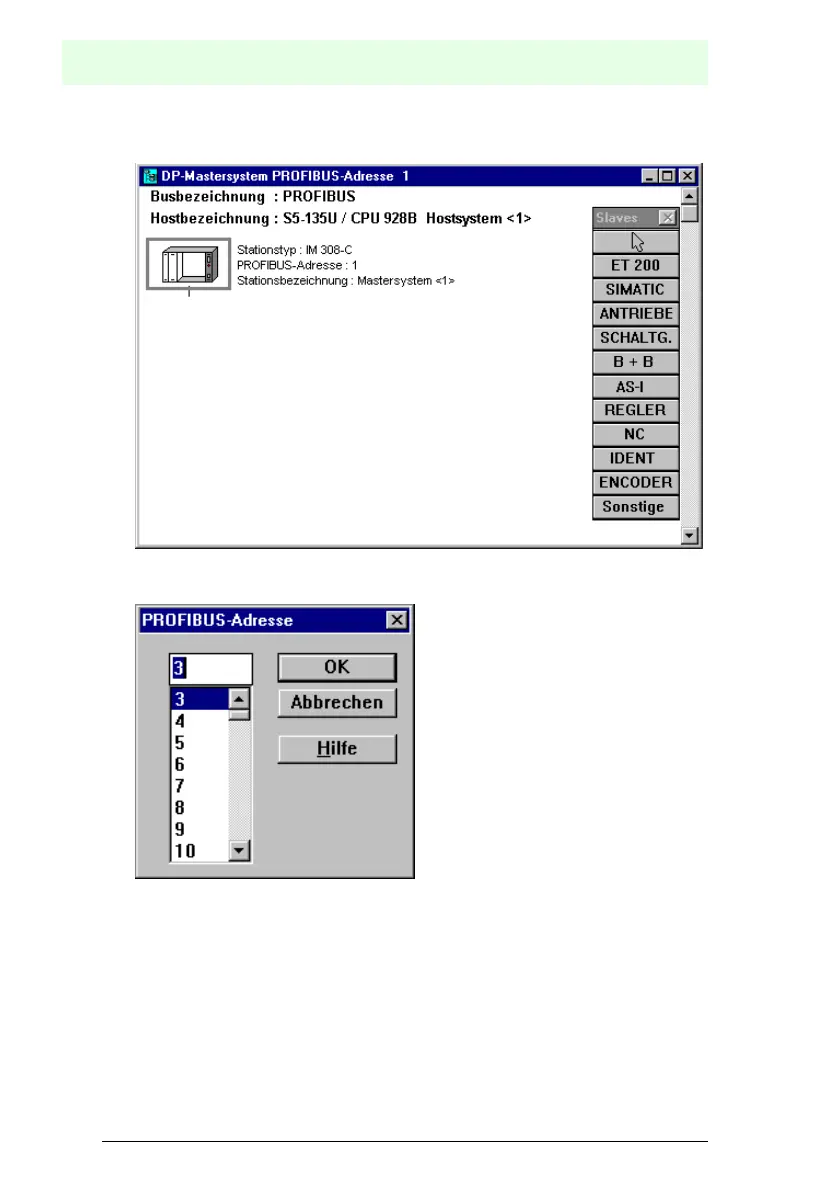

6. In the window “DP Master System“ there is a ledge with several Profibus slaves.
Click on AS-i and drag the icon to the Profibus in the window above.
7. After a second mouse click the dialogbox for the selection of the Profibus station
address appears:
