AS-i/PROFIBUS Gateway
Appendix: Putting Profibus into Operation with a Siemens S5
Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany
Pepperl+Fuchs Group · Tel.: Germany (621) 776-0 · USA (330) 4253555 · Singapore 7799091 · Internet http://www.pepperl-fuchs.com
issue date 12.10.1999
63

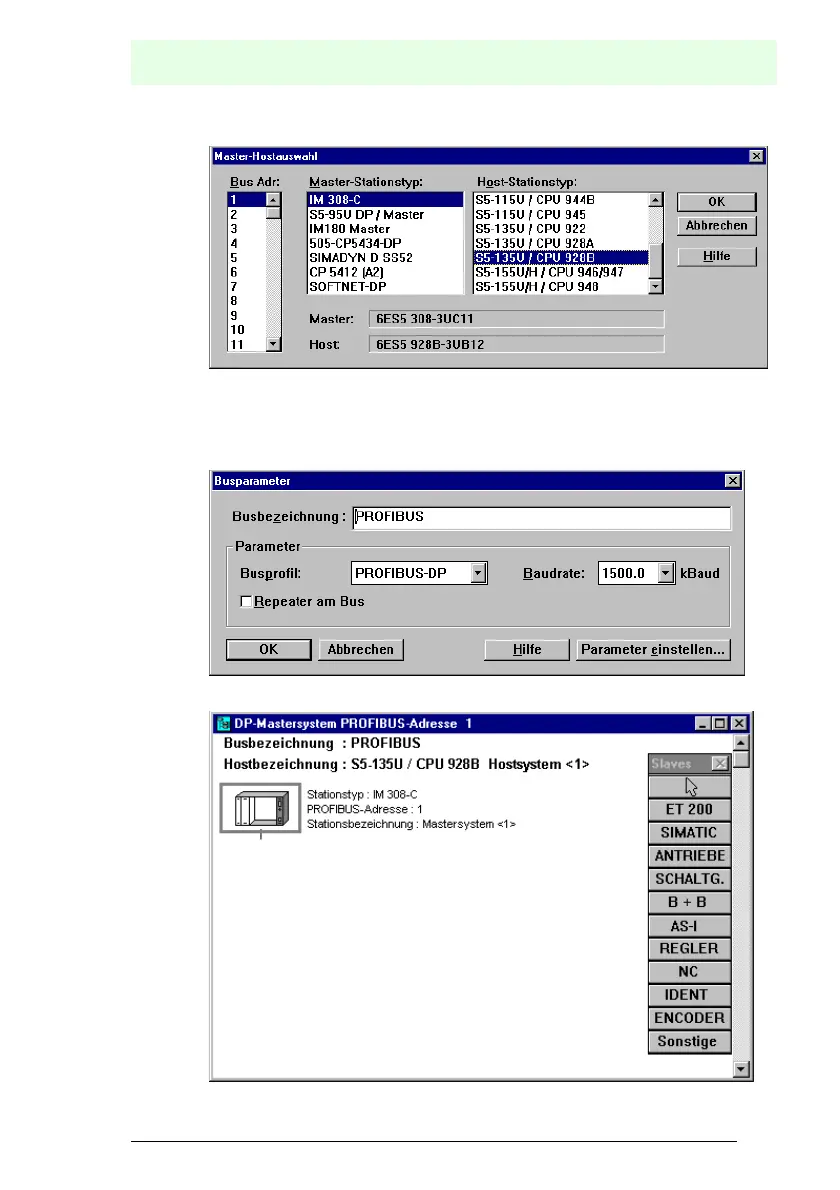

4. Execute the command “File | New“.
The dialogbox “Master & Host Selection“ appears.
Select your Profibus master.
5. With the command “Configure | Master Parameters...“ you can select the baudrate
and other bus parameters.
6. In the window “DP Master System“ there is a ledge with several Profibus slaves.
