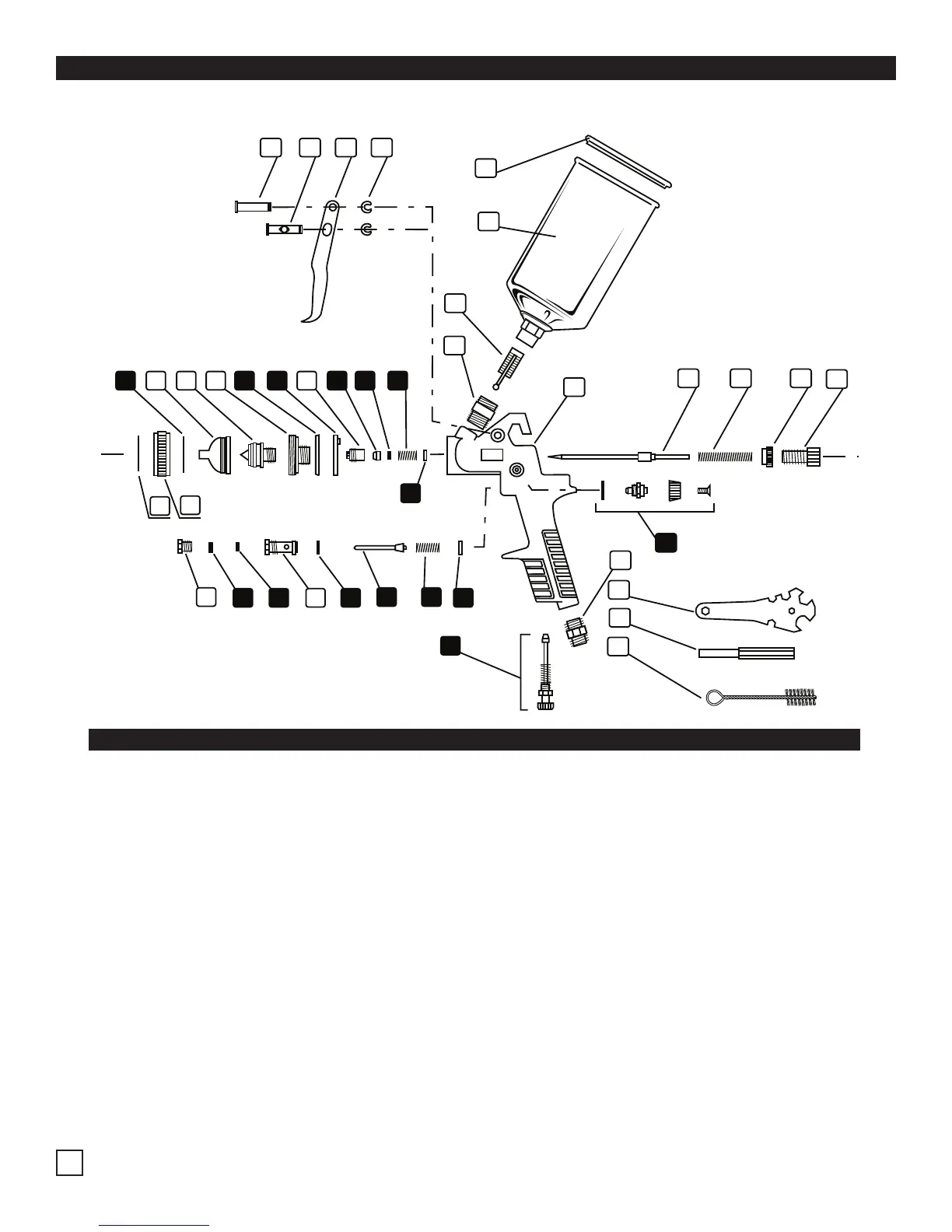

PARTS DRAWING
3
1
4
678
9
11
10
12 13 14 15 18
23 24 25 26
27
28
29
30
36
37
38
39
40
25
31
M706 and M707 Production
Spray Guns
32 33
34
35
16 17 19 20 21
22
6
Please note: Replacement parts listed below
apply to all models listed on this manual.
1 Air Adjustment Valve ......................... 1 21 Locking Spring ................................. 1
2 Gasket ............................................... 1 22 Gasket ............................................... 1
3 Air Valve Spring ................................. 1 23 Trigger Pin - Pivot ............................. 1
4 Air Valve Piston Shaft ....................... 1 24 Trigger Pin - Fluid Needle ................ 1
5 O-Ring ............................................... 1 25 Trigger ............................................... 1
6 Air Valve Seat .................................... 1 26 Retaining Ring .................................. 2
7 O-Ring ............................................... 1 27 Lid ..................................................... 1
8 Pliable Packing Washer .................... 1 28 Cup ................................................... 1
9 Air Valve Packing Nut ....................... 1 29 Fluid Filter ......................................... 1
10 Air Cap Retention Ring ..................... 1 30 Fluid Inlet Fitting ............................... 1
11 Air Cap Locking Ring ........................ 1 31 Gun Body .......................................... 1
12 Air Cap Washer ................................. 1 32 Fluid Needle...................................... 1
13 Air Cap ............................................... 1 33 Fluid Needle Spring .......................... 1
14 Fluid Nozzle ....................................... 1 34 Fluid Adjustment Locking Ring ....... 1
15 Air Manifold ....................................... 1 35 Fluid Adjustment Knob .................... 1
16 Tapered Washer ................................ 1 36 Pattern Adjustment Valve ................ 1
17 Air Manifold Spacer .......................... 1 37 Air Inlet Fitting .................................. 1
18 Retention Screw................................ 1 38 Gun Wrench ...................................... 1
19 Paint Needle Washer ........................ 1 39 Internal/External Hex Wrench .......... 1
20 Sealing Washer ................................. 1 40 Brush................................................. 1
# PART DESCRIPTION QTY. # PART DESCRIPTION QTY.
Spray Gun Rebuild Kit
Numbers in black indicate parts
included in Spray Gun Rebuild Kit.
To Next Page
