Ram Attachments:
1. The Extensions (5-8) connect in different
combinations to reach desired lengths.
2. The Male Connector (14) is used to con-
nect the female end of the Ram (3) to a
Base.
3. The Flat Base (9) is typically used on the
stationary side to spread out the force of
the Ram (3).
4. The V-Base (13) is used to offset the
force of the Ram (3) when there is not a
straight line between the stationary side
and the damaged side, or to spread out
force on curved surfaces.
SETUP INSTRUCTIONS

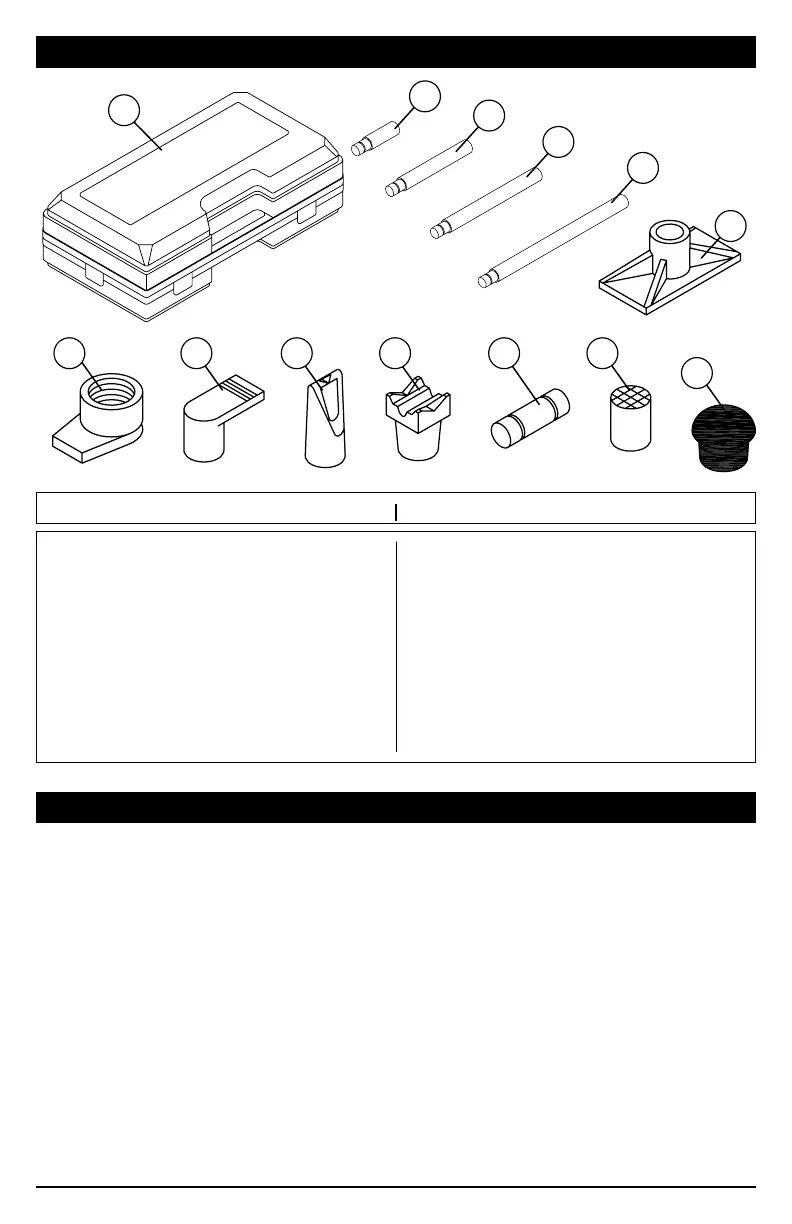

PACKAGING CONTENTS
1 Pump 1
2 Spreader Wedge 1
3 Ram 1
4 Case 1
5 4 1/4 in. Extension 1
6 10 in. Extension 1
7 14 1/2 in. Extension 1
8 20 1/2 in. Extension 1
9 Flat Base 1
10 Ram Toe 1
11 Plunger toe 1
12 Wedge head 1
13 V-base 1
14 Male Connector 1
15 Cap Head 1
16 Rubber head 1
# Description Quantity # Description Quantity
4
5
6
7
10 12 13
8
9
14 15
16
11
5. The Cap Head (15) is typically used on
the pushing end to prevent slipping.
6. The Rubber Head (16) is typically used
for popping dents out of sheet metal such
as doors or body panels and to minimize
damage to the work surface.
7. The Wedge Head (12) is used to repair
small dents and areas located in angles
and tight spaces.
8. The Ram Toe (10) and Plunger Toe (11)
are used together to allow spreading in
areasthattheRamcannottinto.
