Performance Tool W1651 User Manual

5
Ram Setup:
Note: When positioning the Ram (3) use a
smaller attachment on the side that
is to be bent instead of the stationary
side. If the stationary side is in dan-
ger of being bent or damaged, place
a block of wood or other material
behind the Flat Base (9) to distribute
pressure over a greater area.
1. Clean the end of the Hose and the inlet
on the Ram (3). Unscrew and save the
End Plugs located on the end of the hose
and Ram (3).
2. Attach the Hose to the Ram.
3. Assemble attachments as shown in
gure1and2.
Note: If using the Plunger Toe and Ram
Toe, thread the Ram Toe onto the
Ram completely and align the
Plunger Toe to it.
Spreader Wedge Setup:
The Spreader Wedge (2) is used when the
Ram(3)istoolongtotbetweenthestation-
ary side and the damaged area.
1. Clean the end of the hose and the inlet on
the Spreader Wedge (2).
2. Unscrew and save the End Plugs located
on the end of the hose and Spreader
Wedge (2).
3. Attach the Hose to the Spreader Wedge
(2),asshowningure3.
SETUP INSTRUCTIONS
Note: The Flange Base and Flange Head must only be used together to prevent an off
center load.
Note: When positioning the Ram (3) use a smaller attachment on the side that is to be
bent instead of the stationary side. If the stationary side is in danger of being bent
or damaged, place a block of wood or other material behind the Flat Base (9) to
distribute pressure over a greater area.

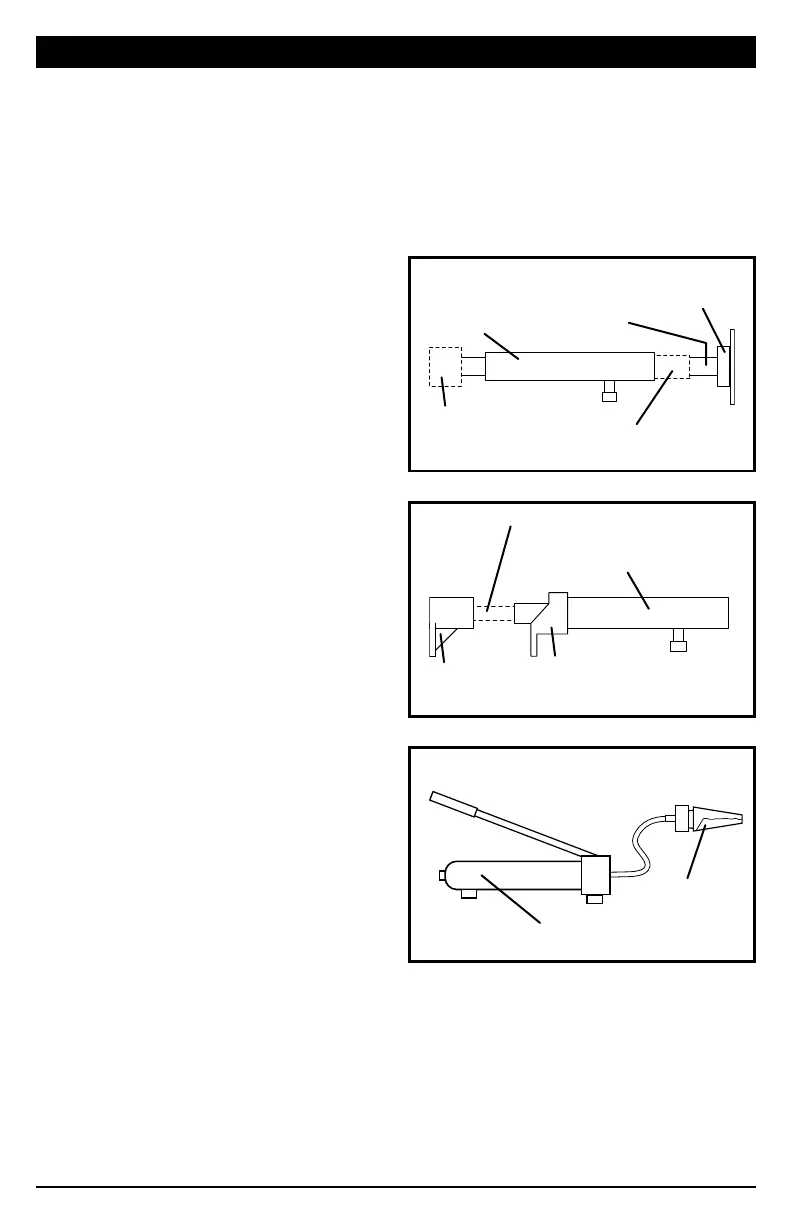

Fig. 1
Fig. 2
Fig. 3
Ram (3)
Ram (3)
Spreader
Wedge (2)
Male
Connector (14)
Extension Bars (5-8)
as needed
Extension Bars (5-8)
as needed
Pump (1)
V-base (13) or
Flat Base (9)
Cap Head (15)
Rubber Head (16)
or Wedge Head (12)
Plunger
Toe (11)
Ram
Toe (10)
