5Instructions for Assembly and Use – Standard Configuration
MULTIPROP Slab Props
A1 Assembly

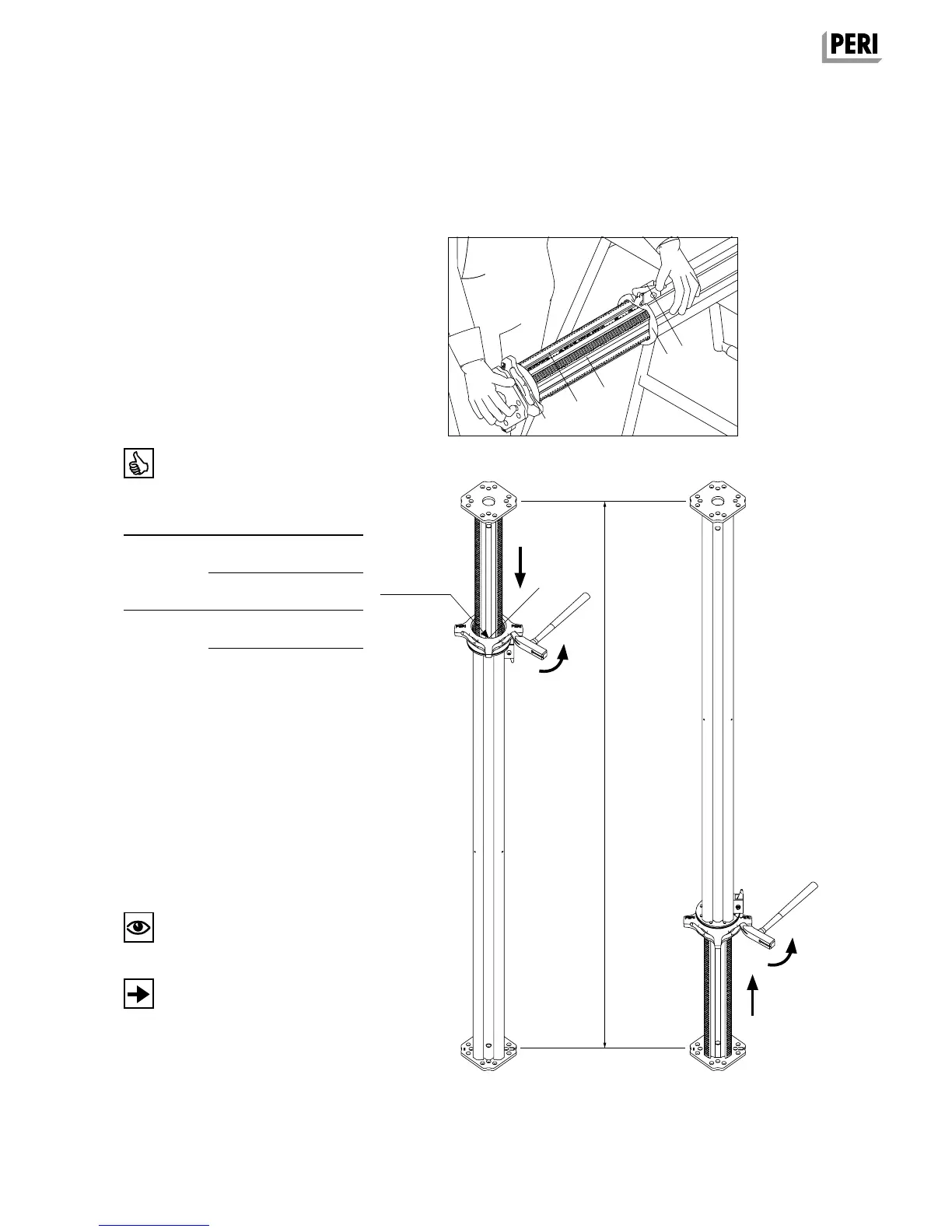

Fig. A1.02a
Inner tube bottom
Fig. A1.02c
4
6
2
3
7
adjusted
overall length
Position
Turn adjust-
ing collar
“L” is:
Outer tube
bottom
(Fig. A1.02b)
anti-clock-
wise
smaller
anti-clock-
wise
larger
clockwise larger
clockwise smaller
Inner tube
bottom
(Fig. A1.02c)
L
Rough adjustment of the extension
length
1. Press down safety hook (3).
–> Inner tube (2) together with the
adjusting collar (4) is released.
(Fig. A1.02a)
2. Pull out inner tube until the length
indicated on the measuring tape (6) is
slightly more than the required prop
length.
3. Turn the adjusting collar until the
required extension length is reached.
4. Push in the inner tube until the
adjusting collar lies against the rubbing
plate (7).
–> Safety hook locks the inner tube in
position.
5. Fine adjustment of adjusting collar
(4) to specified length.
Is the safety hook engaged?
Quick adjustment of the smooth-
running adjusting collar is carried
out by “fast spindling“.
Outer tube bottom
Fig. A1.02b
4a
