Peri MULTIPROP MP 120 - Dismantling; Releasing the Slab Prop under Load

7Instructions for Assembly and Use – Standard Configuration
MULTIPROP Slab Props
Releasing the slab prop
under load
For loads > 60 kN, use the Wing Nut
Spanner HD!
Dismantling:
1. Release adjusting collar and set load-
free with:
– hammering the lowering cam.
(Fig. A2.01a)
– Wing Nut Spanner HD Item no.
022027. (Fig. A2.01b)
2. Remove slab prop.
3. Dismantle slab prop.
– Press down safety hook.
–> Inner tube with adjusting collar is
disengaged.
– Pull out inner tube a short distance
and spindle adjusting collar back to
the end plate.
– Push in the inner tube until the
adjusting collar lies against the rub-
bing plate.
–> Safety hook locks the inner tube in
position.
4. Place slab prop in the pallet.
See Section A5 “Storage and Transpor-
tation”.
The Wing Nut Spanner HD facilitates
energy-saving and noiseless loosening
of the adjusting collar – even if the
props are placed under maximum load.

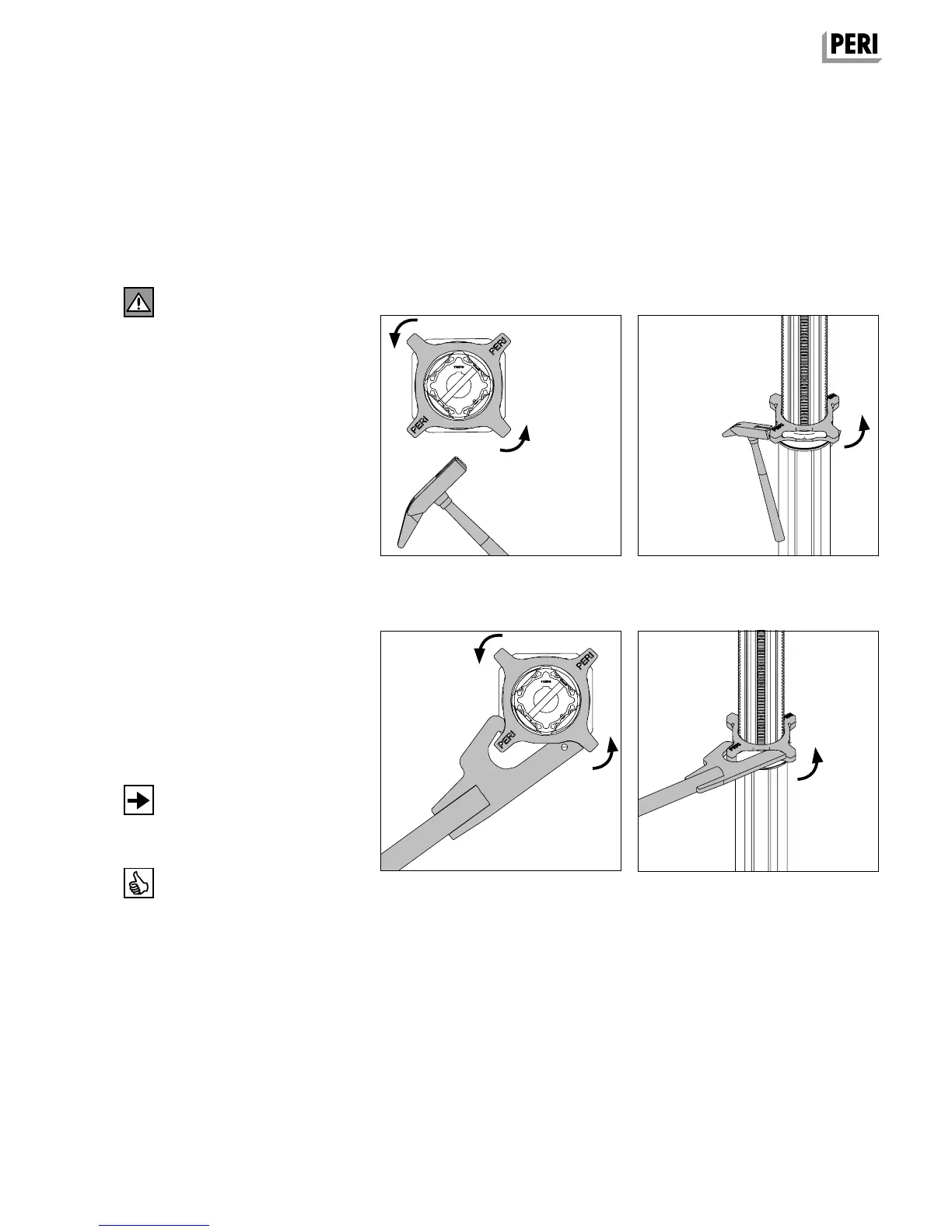

Fig. A2.01a
Fig. A2.01b
A2 Dismantling
Outer tube bottom
Outer tube bottom
