Instructions for Assembly and Use – Standard Configuration
MULTIPROP Slab Props
A1 Assembly
Assembly with Universal
Tripod
For slab props with tube Ø 48 mm to
Ø 120 mm.
Slab Props and Tripods
– place on clean, flat and sufficiently
load-bearing surface only!
– are not suitable for planned transfer
of horizontal loads!
– Shown here is the assembly of a
free-standing slab prop.
– When used in the system, the
respective Instructions for Assembly
and Use are to be taken into account.
– Universal Tripods (9) are pure assem-
bly aids for shuttering and striking up
to heights of approx. 3 m.

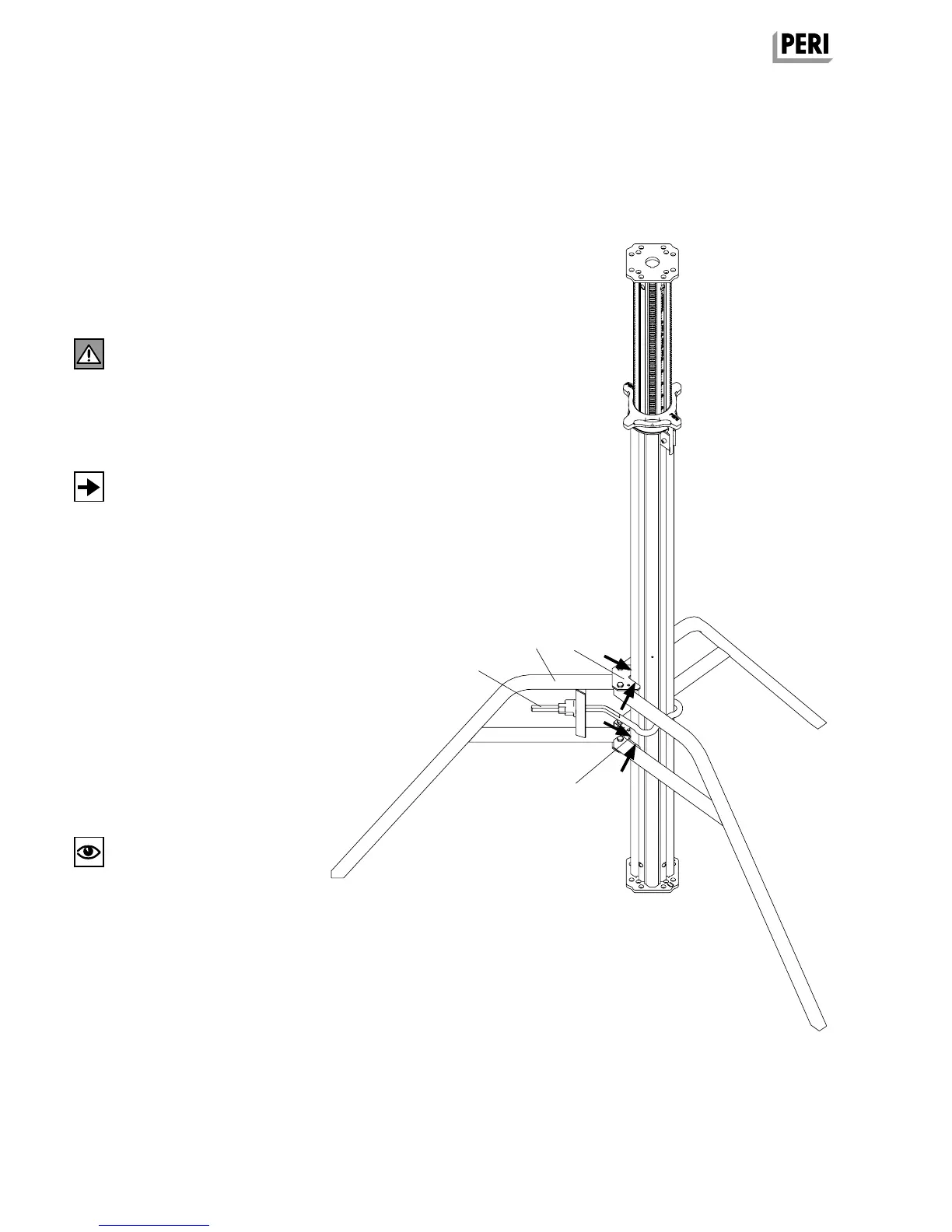

Universal Tripod assembly
1. Insert pre-assembled slab prop into
the Universal Tripod (9).
(Fig. A1.03)
2. Tighten clamp (9a).
Ensure that the slab prop lies flat
against the top and bottom connection
plates (9b and 9c).
(Fig. A1.03)
– Does the slab prop lie flat to the top
and bottom connection plates?
– Has the clamp been tightened?
– Is the slab prop in a perpendicular
position?
