Tube line installation for Lambda 365

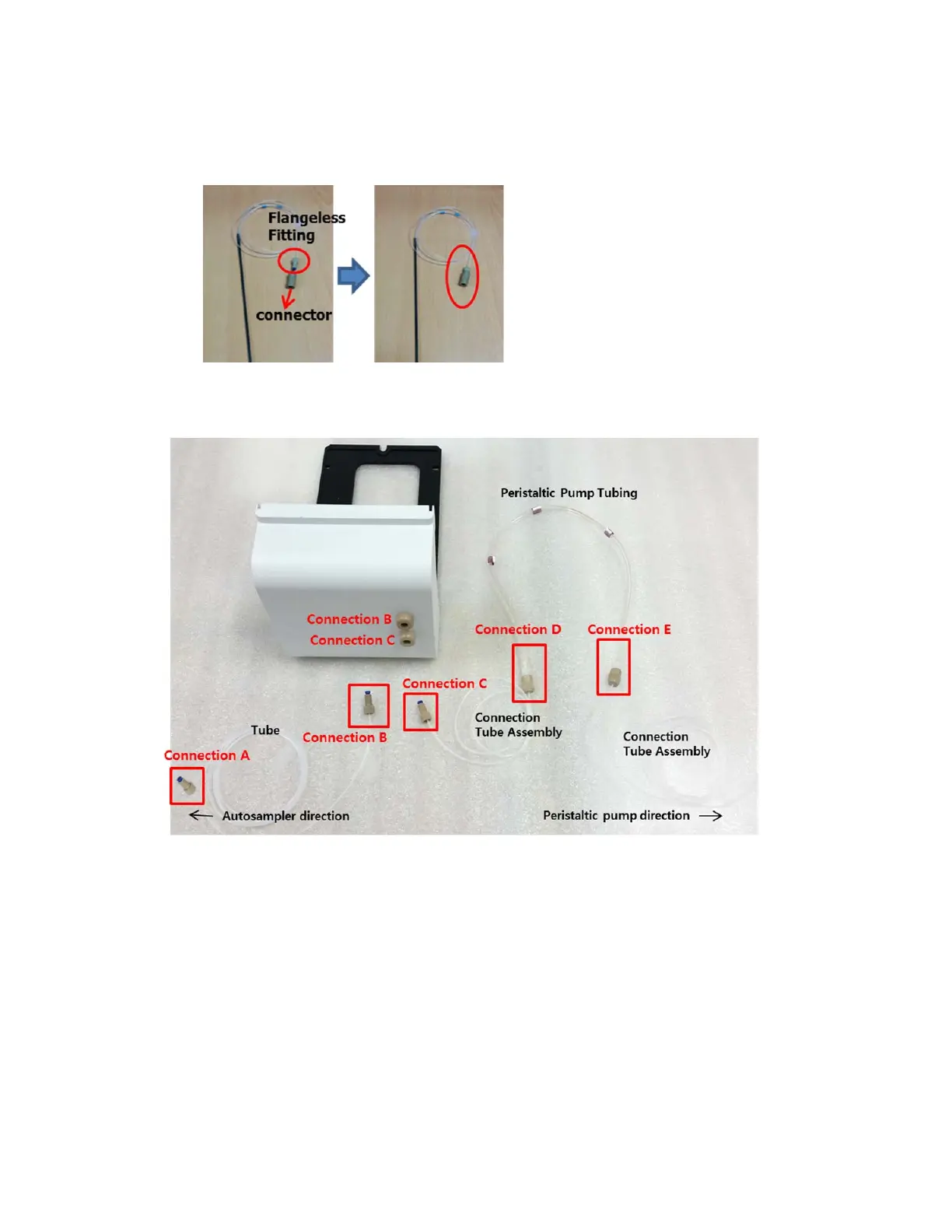

1. Assemble the flangeless fitting in the union and ferrule kit and connect it to the
tube of the autosampler probe.
2. Prepare the tube connection components and the front plate for Auto Sipper
accessory and assemble each component one by one.
Connection A: Assemble the other flangeless fitting in the autosampler
connection kit to the terminal of tube, and connect it to the union of autosampler
probe.
Connection B: Assemble the flangeless fitting to the terminal of tube and
connect it to the front plate.
NOTE:
Assemble the flangeless fitting to the terminal of tube after separating the flangeless fitting
from Connection tube assembly.
