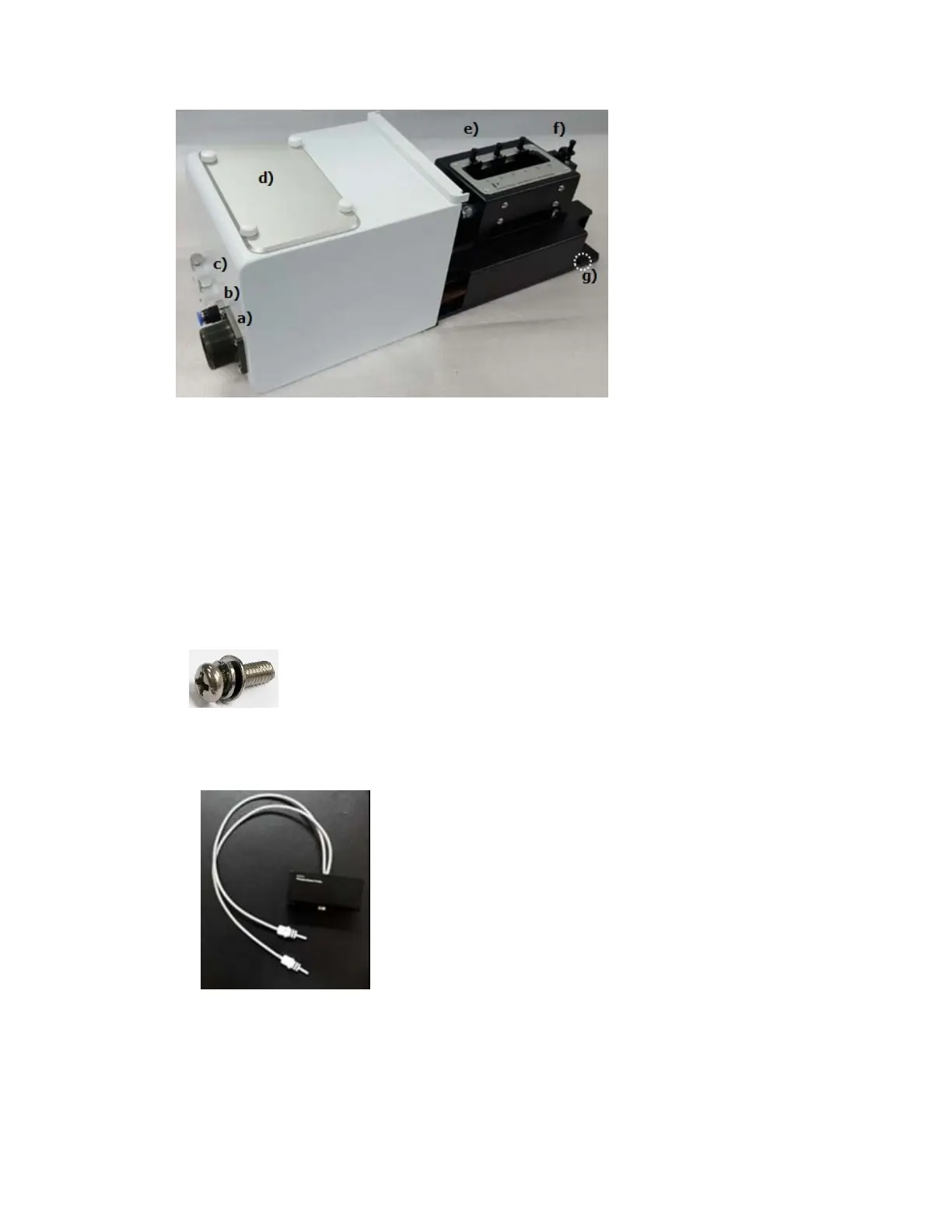

Figure 2-2 Lambda 365 6-Position Peltier Controlled Cell Changer (without heated
reference)
a. Interface connector between 6-Position Peltier Controlled Cell Changer and Peltier Controller
b. Coolant Inlet/Outlet Quick Coupler
c. N
2
Gas fitting
d. Interface slot for Temperature Probe
e. Cell Lifting knob for sample cells
f. Cell Lifting knob for reference cell
g. Phillips round headscrew with washer
Used to fix a cell holder, a base plate or a front plate for Lambda 365.
Spare screws (2ea) are enveloped with the accessory.
Figure 3 Phillips round headscrew with washer (M4 *12L)
h. Temperature Probe
Figure 4 Temperature probe
