Workshop Manual, TPD 1377E, issue 4 55
100 Series

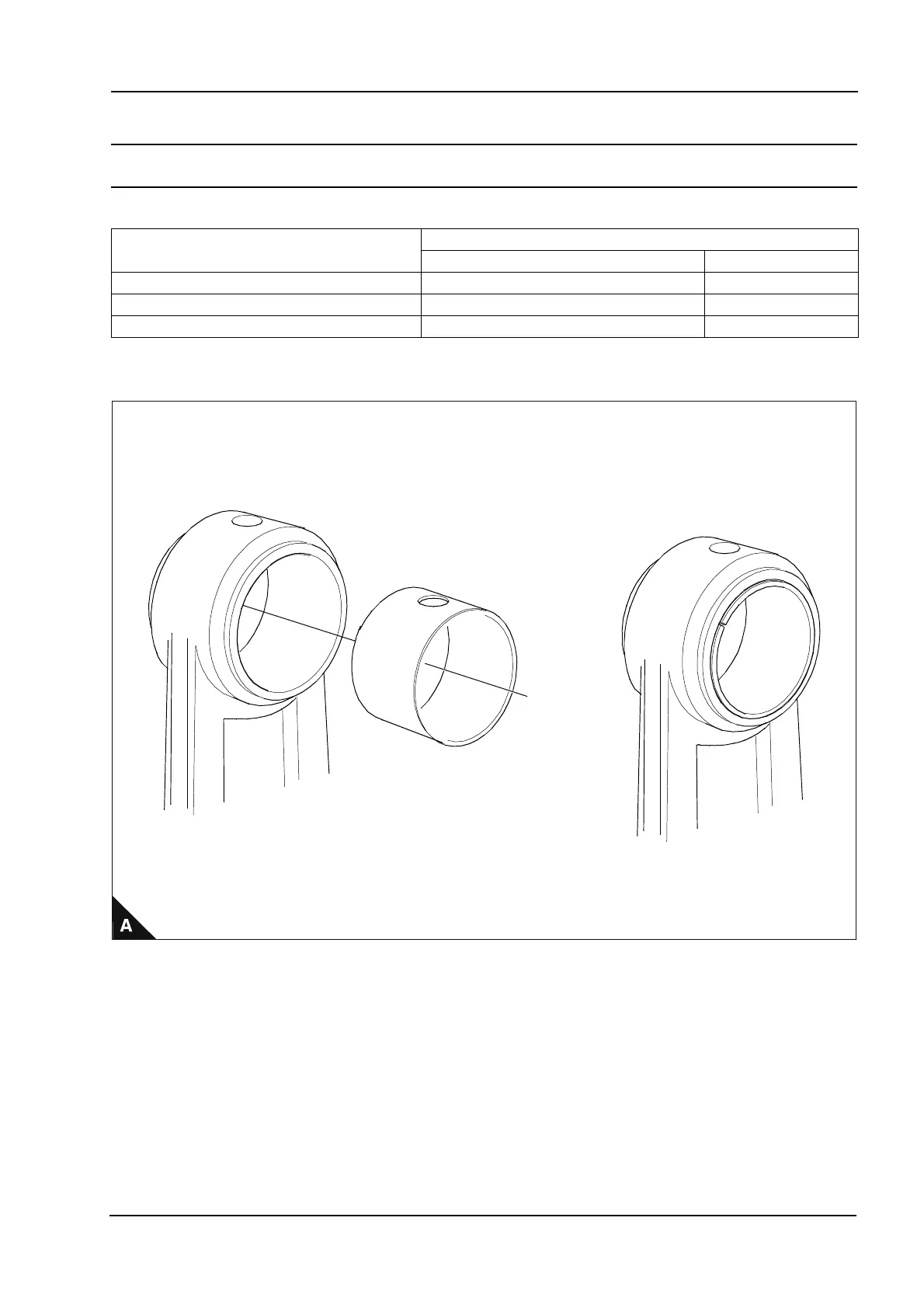

Small end bush
To remove and to fit Operation 4-7
Special requirements
Calculate the clearance between the small end bush and the gudgeon pin. If the clearance exceeds the service
limit, renew.
Engine model
Clearance mm (in)
Standard Service limit
102-05, 103-07 0,013 - 0,028 (0.00051 - 0.00110) 0,1 (0.004)
103-10 0,008 - 0,023 (0.00031 - 0.00091) 0,1 (0.004)
103-13, 103-15, 104-19, 104-22 0,010 - 0,025 (0.00040 - 0.00099) 0,1 (0.004)
