Remove the front load ring before returning the
engine to service, to prevent the last load ring from
rubbing on the fan belt.
Engine and Installed Radiator Only
The engine lifting eyes are rated to lift an engine with
attached radiator, assuming a less than 5 degree tilt
angle can be maintained. Be sure to use an
appropriate spreader set so that lifting chains are
perpendicular to the engine.
Radiator Only
Detach the radiator, and mounting bracket at the
engine front support. Add eyebolts or lifting brackets
to the threaded holes marked for lifting.
Clean Emission Module Lifting

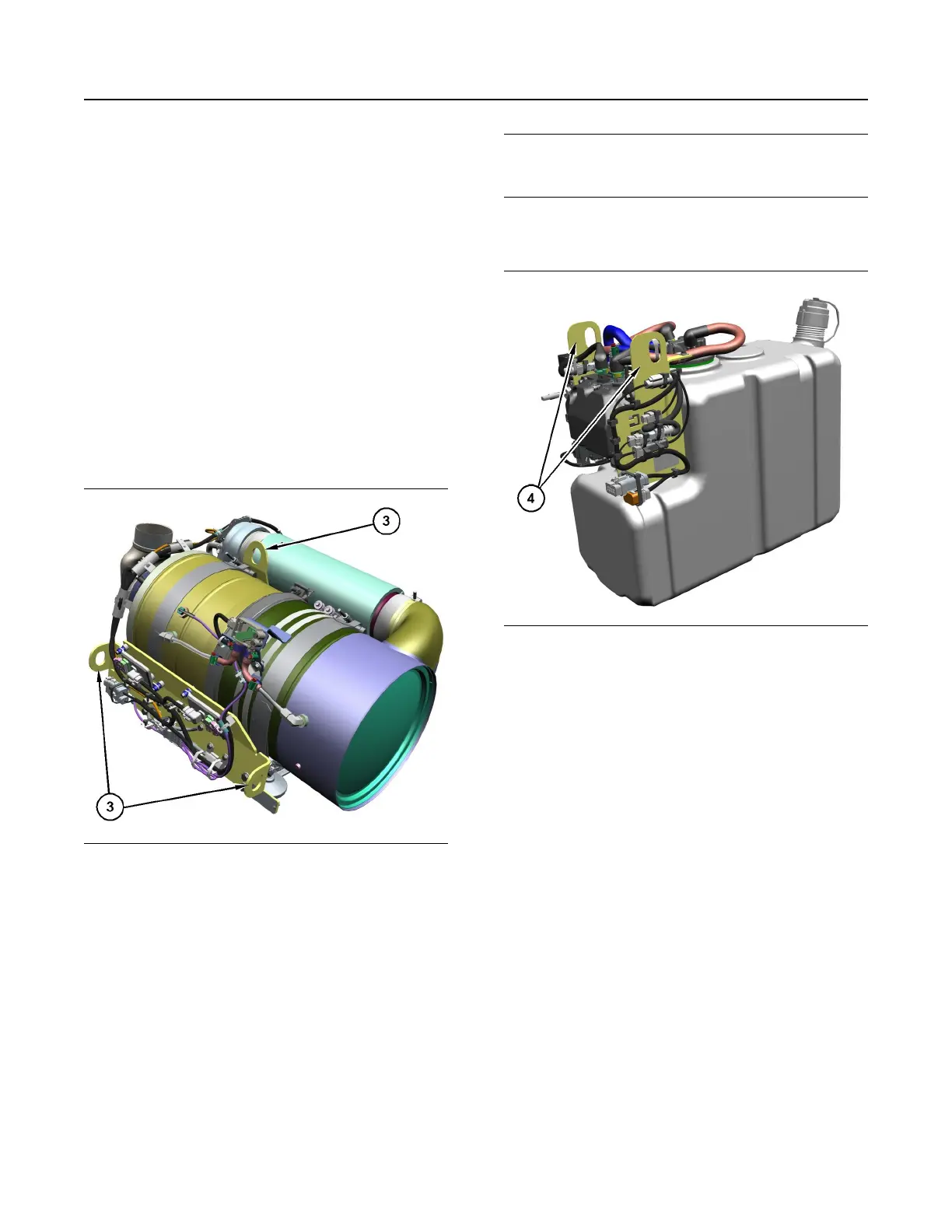

Illustration 42 g06251427
(3) Clean Emission Module (CEM) lifting eye locations
Detach the Clean Emission Module (CEM) and use
the lifting eyes attached to the CEM support for lifting.
Care must be taken to identify the center of gravity of
the CEM.
NOTICE
Do not attempt to use the radiator or CEM lift points
to aid in the engine package lift.
Pump Tank Unit (PTU)
Illustration 43 g06251429
(4) Diesel Exhaust Fluid (DEF) and electronic unit lifting locations
i07249571
Product Storage
(Engine and Aftertreatment)
Your Perkins distributor can help in preparing the
engine for extended storage periods.
Some applications, the engine can be equipped with
delayed engine shutdown. Allow at least 2 minutes
after the engine has stopped before you turn the
battery disconnect switch to OFF. Disconnecting the
battery power too soon will prevent purging of the
DEF fluid lines after the engine is shut down. Also,
during the 2 minutes the engine electronic control
module is active storing information from the engine
and aftertreatment sensors.
Condition for Storage
An engine can be stored for up to 6 months provided
all the recommendation are adhered to.
M0087475-06 37
Operation Section
Product Storage
