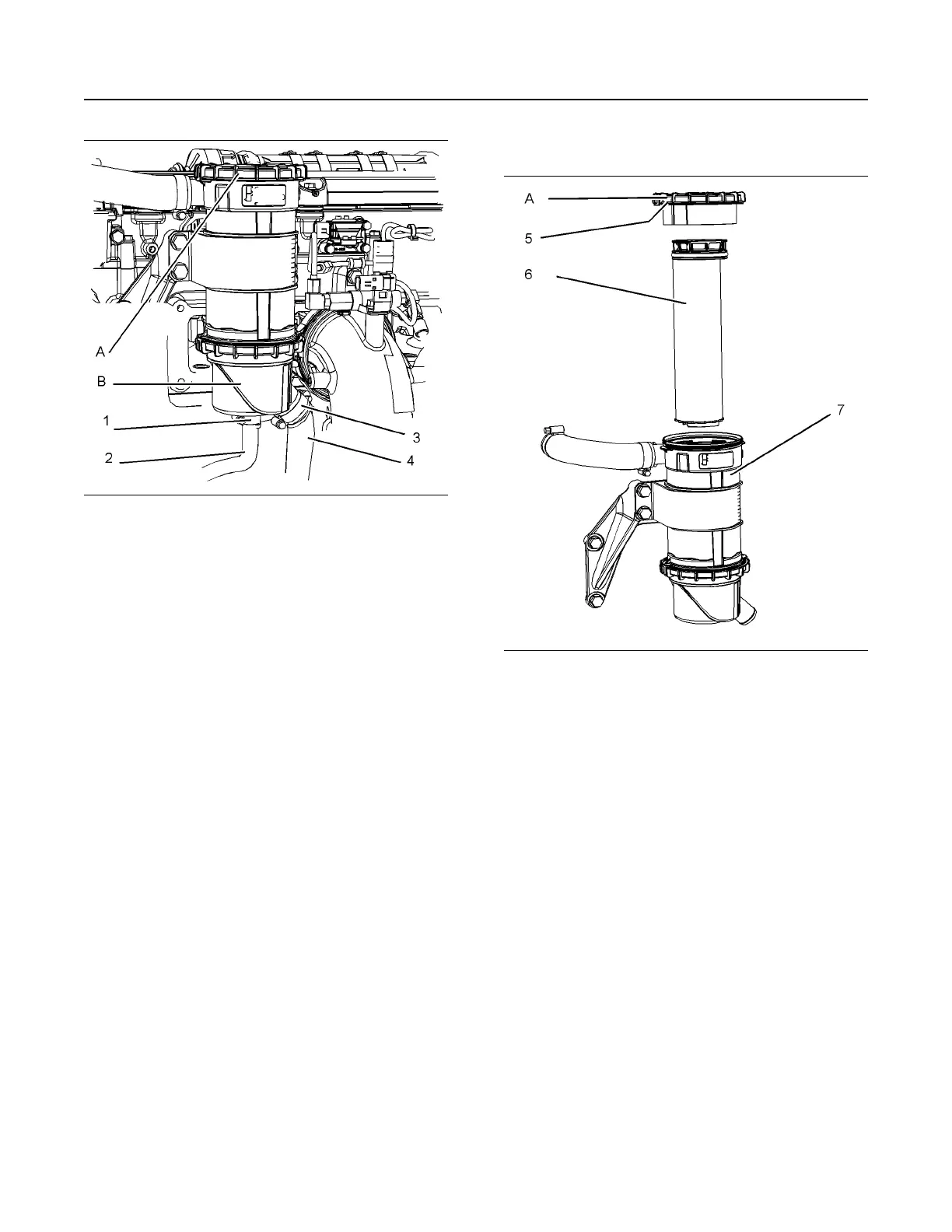

Illustration 90 g03814471
(A) Cap
(B) Cap
Element Service
The filter element can be serviced by removing cap
(A) or by removing cap (B). Ensure that the outlet of
hose (4) is clean and free from debris.
Cap A
Illustration 91 g03814811
1. Remove cap (A) from breather body (7). Remove
the filter element (6) from breather body. Discard
old filter element.
2. If necessary, remove O ring seal (5) and discard.
3. Ensure correct orientation of new filter element (6)
and install filter element in to breather body. If
necessary, install new O ring seal to cap (A).
4. Install cap (A) hand pressure only.
SEBU9071-01
107
Maintenance Section
If Equipped
