Perkins 2206J-E13TA - Page 39

Clean Emissions Module without
(ARD)

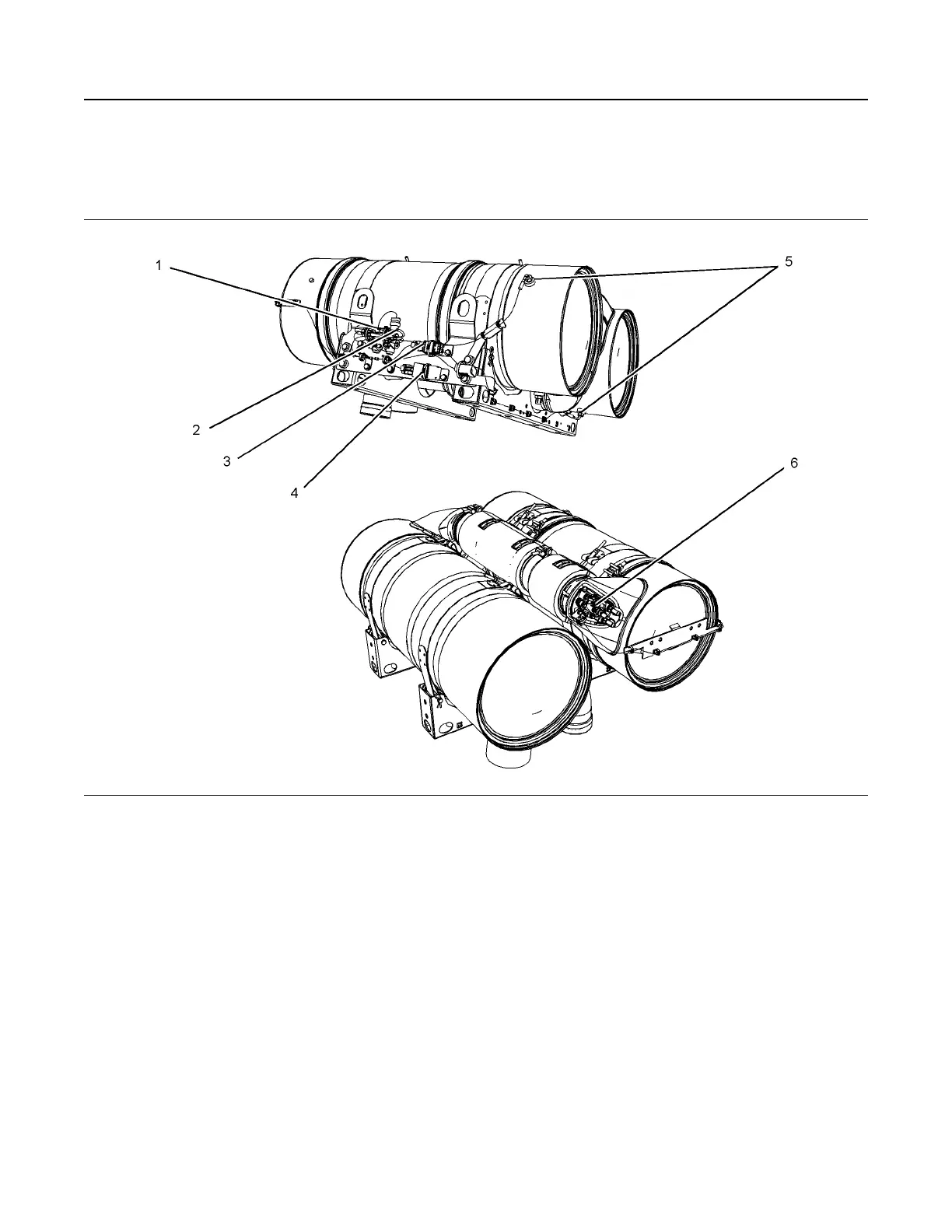

Illustration 36 g03821962
(1) Diesel Exhaust Filter (DPF) outlet
pressure sensor
(2) DPF inlet pressure sensor
(3) Diesel oxidation catalyst temperature
sensor
(4) Aftertreatment identification module
(5) Temperature sensor probes
(6) Diesel exhaust fluid injector
SEBU9071-06
39
Operation Section
Sensors and Electrical Components
