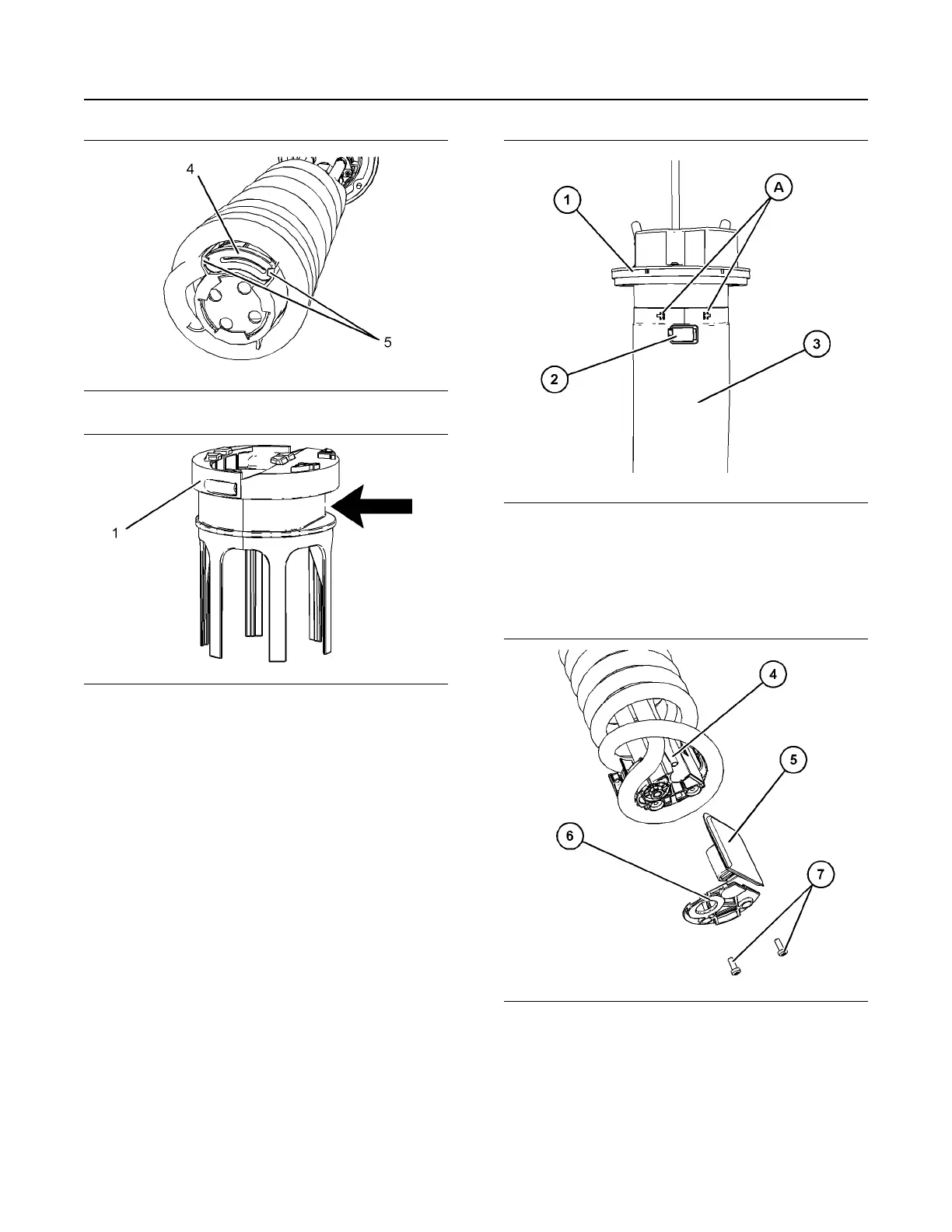

Illustration 76 g03806581
Illustration 77 g03806583
4. Remove the suction filter (4) at the bottom of the
header coils by pulling tabs (5). Replace with a
new suction filter.
5. Install new filter by pulling filter over the manifold
coils up to the bottom of the assembled filter base.
6. Ensure that the band clamp is aligned, as shown in
illustration 77 , to the flat section on the filter base.
Tighten the band clamp to 4.5 ± 0.7 N·m
(40 ± 6 lb in) (1). Ensure that the filter does not
bunch when tightening the band clamp.
7. Install the manifold, refer to Disassembly and
Assembly, “Manifold (DEF Heater) - Remove and
Install” for the correct procedure.
Type 2 Manifold
To remove the DEF manifold and the hoses
connections from the DEF tank, refer to Disassembly
and Assembly, Manifold (DEF Heater) - Remove and
Install.
Illustration 78 g06159487
1. Note the location of clamp (2). The clamp (2) must
be between the marked location (A).
2. Loosen clamp (2) and remove outer filter (3) from
DEF tank header (1) and discard outer filter (3).
Illustration 79 g06159580
3. Remove screws (7) and remove retaining plate (6).
4. Remove DEF filter (5) from pickup tube (4) and
discard the used filter (5).
5. Install new filter (5) onto pickup tube (4).
M0076814-03 91
Maintenance Section
DEF Manifold Filters (Emission Related Component) - Replace
