6. Tighten the vent screw (1) securely . Remove the
wiring harness from connection (4).

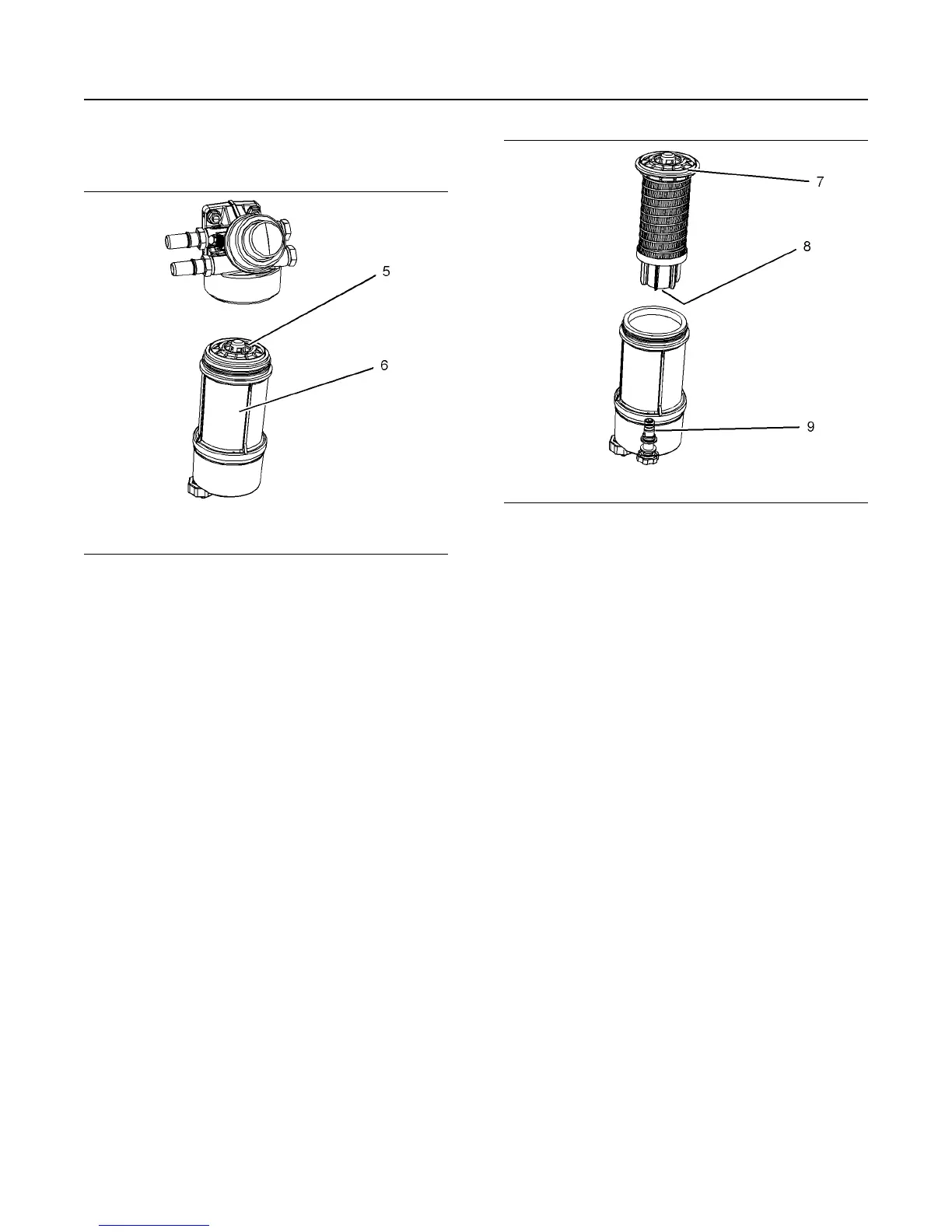

Illustration 64 g03374223
Typical example
7. Using a suitable tool, remove the filter bowl (6).
Rotate the filter assembly counterclockwise in
order to remove the filter assembly. Use a suitable
tool in order to remove the filter assembly.
8. Rotate the filter element counterclockwise and
remove the filter element (5). Clean the filter bowl.
Install the Element
Illustration 65 g03374224
Typical example
1. Locate the thread in the filter element (8) onto the
threads (9). Spin on the element. Do not tighten.
2. Lubricate the O ring seal (7) with clean engine oil.
Do NOT fill the bowl with fuel before the assembly
is installed.
3. Do NOT use a tool in order to install the filter
assembly. Tighten the filter bowl (6) by hand.
Install the filter bowl (6) and align with your
temporary marks (A).
4. Tighten the valve (2) securely. Remove the
container and dispose of the fuel in a safe place.
5. The secondary filter element must be replaced at
the same time as the primary filter element. Refer
to the Operation and Maintenance Manual, “Fuel
System Filter - Replace”.
SEBU8726 103
Maintenance Recommendations
Fuel System Primary Filter (Water Separator) Element - Replace
