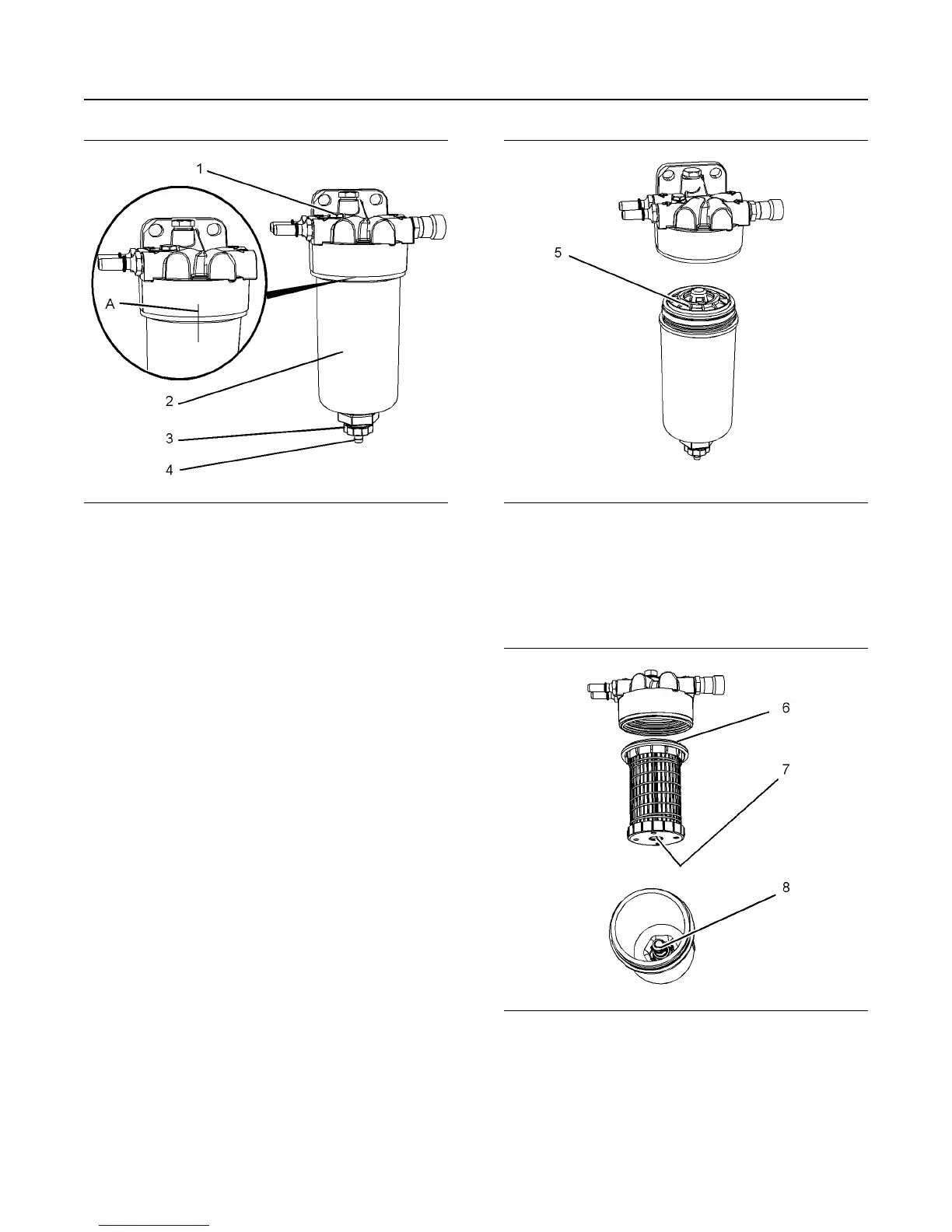

Illustration 67 g02522536
Typical example
3. Make a temporary Mark (A) across the filter before
the assembly is removed. Install a suitable tube
onto drain (4). Open the drain valve (3). Rotate the
drain valve counterclockwise. Two full turns are
required. Loosen vent screw (1).
Note: Two complete rotations of the valve will release
the valve from the filter element.
4. Allow the fuel to drain into the container. Remove
the tube and install the valve into the filter element.
Engage the threads of the valve into the filter
element. Do not secure the valve.
5. Tighten the vent screw (1) securely.
6. Remove the filter bowl (2). Rotate the filter
assembly counterclockwise in order to remove the
assembly. Use a suitable tool in order to remove
the filter bowl.
Illustration 68 g02522538
Typical example
7. Rotate the filter element counterclockwise and
remove the filter element (5). Clean the filter bowl.
Install the Element
Illustration 69 g02522540
Typical example
1. Locate the thread in the filter element (7) onto the
threads (8). Spin on the element. Do not tighten.
2. Lubricate the O ring seal (6) with clean engine oil.
Do NOT fill the filter bowl (2) with fuel before the
filter assembly is installed.
SEBU8726 105
Maintenance Recommendations
Fuel System Secondary Filter - Replace
