Perkins 854F-E34T - Page 45

Separate Inlet Pressure and Inlet Temperature Views

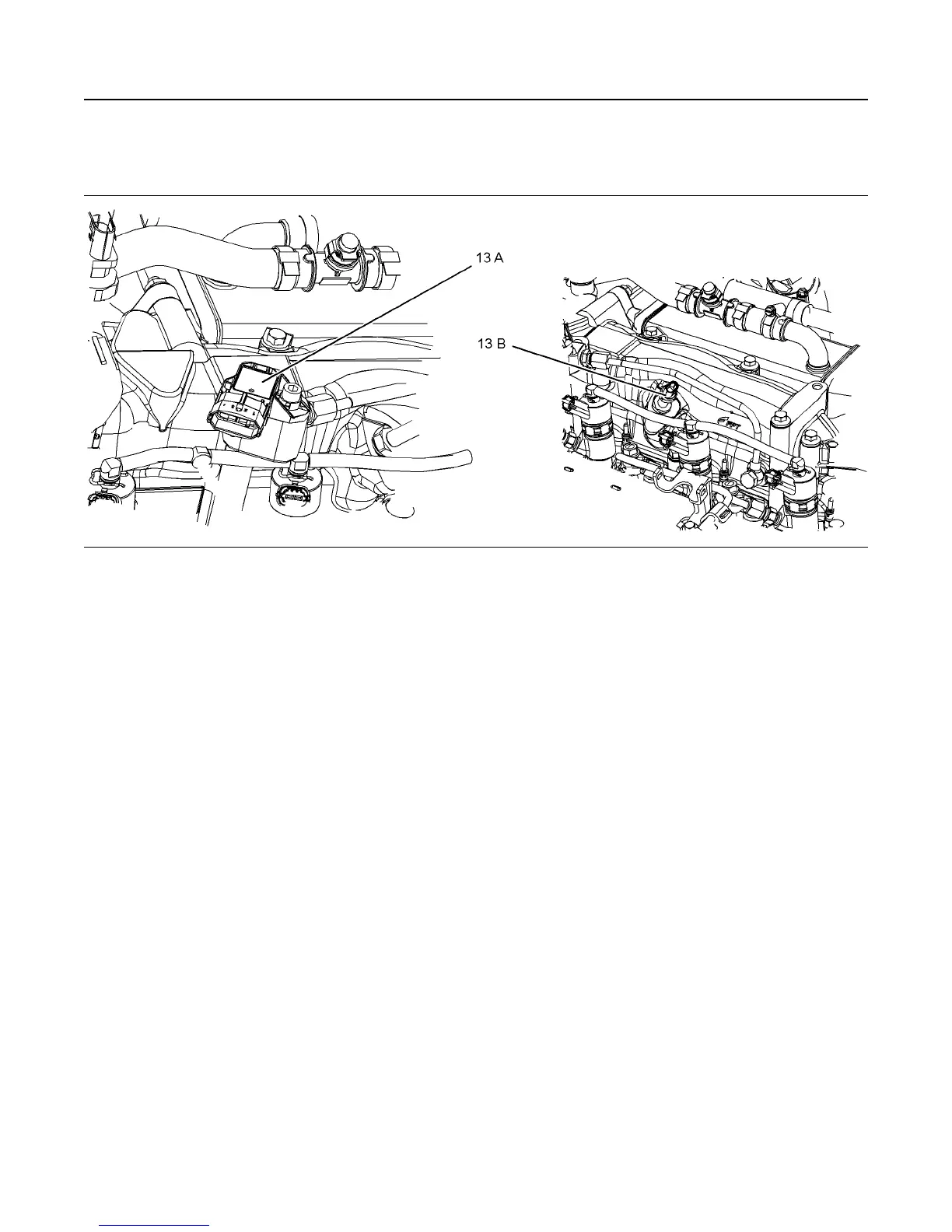

Illustration 35 g03373791
Typical example
(13 A) Intake manifold pressure sensor (13 B) Intake manifold temperature sensor
SEBU8726
45
Features and Controls
Sensors and Electrical Components
