Loose or Off Engine Components

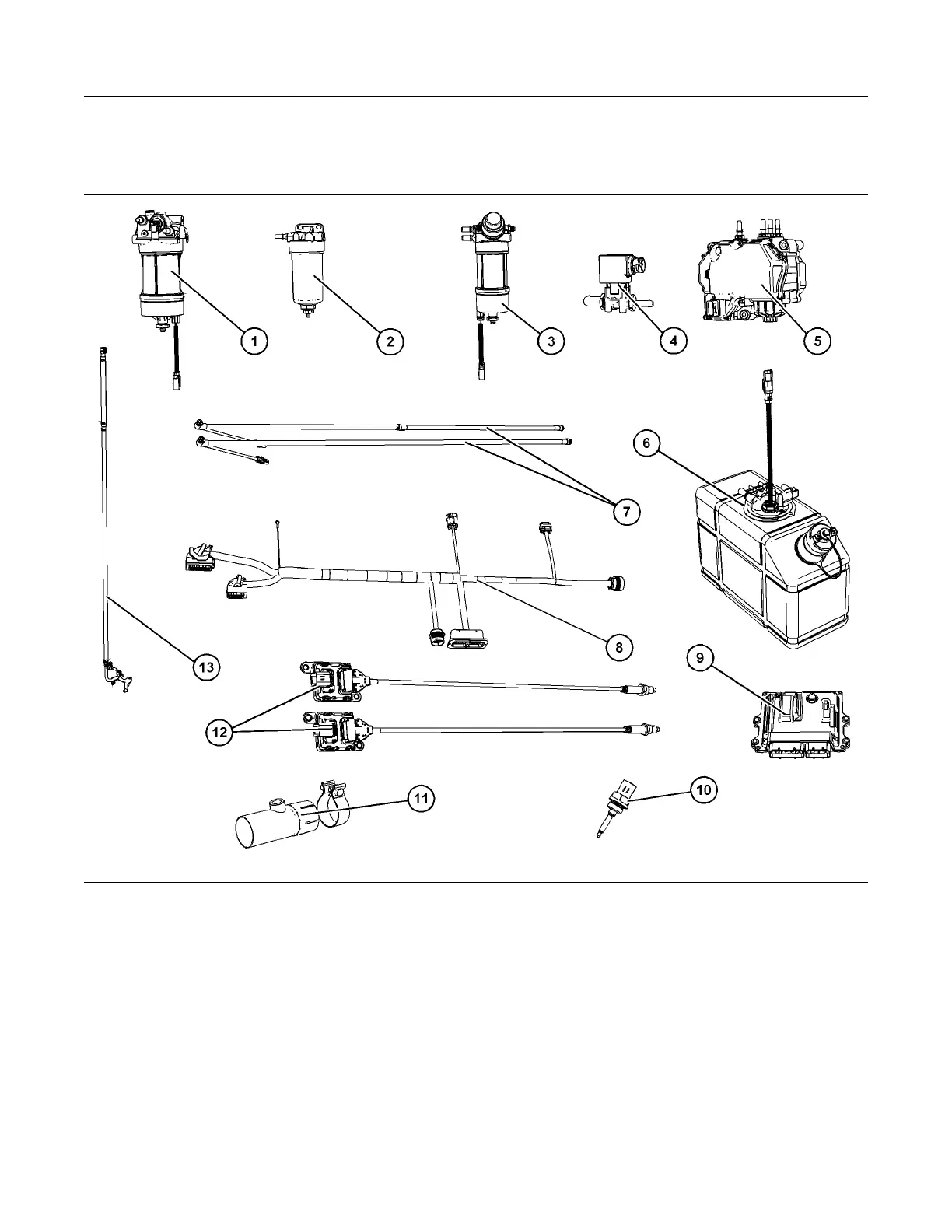

Illustration 29 g06297651
Typical example
(1) Primary fuel filter, combined with electric
fuel priming pump and Water-In-Fuel
(WIF) sensor
(2) If equipped, secondary fuel filter
(3) Primary fuel filter, combined with manual
fuel priming pump and Water-In-Fuel
(WIF) sensor
(4) Coolant diverter valve
(5) Diesel Exhaust Fluid (DEF) pump with
DEF pump filter
(6) DEF tank with DEF header installed
(7) DEF heated lines
(8) Link harness
(9) Electric control module
(10) Inlet temperature sensor
(11) Exhaust assembly
(12) NOx sensors
(13) Low-pressure fuel line
M0092609-05 33
