06

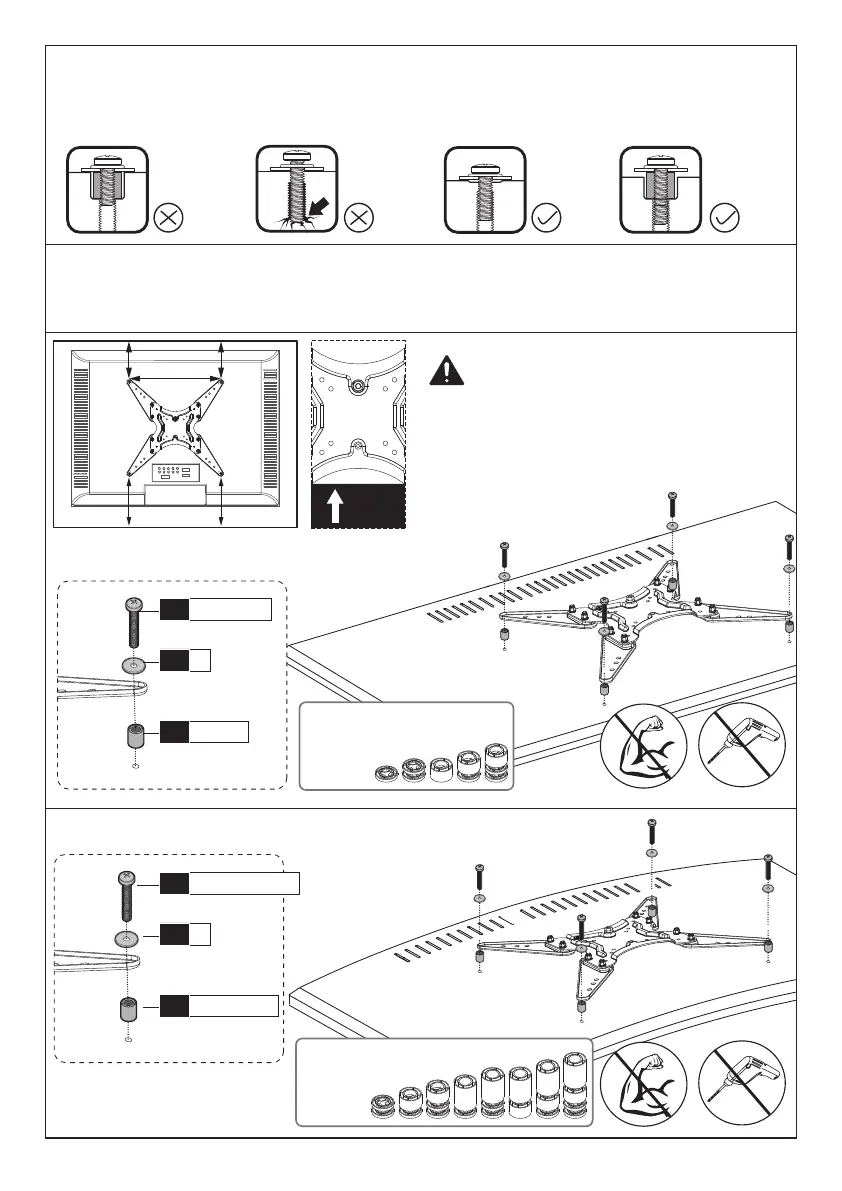

Bolt length: Verify adequate thread engagement with bolts or bolts/spacers
combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Note: If necessary, the spacers can be used in multi-layer. If the installation
fails after trying various methods, please contact customer service at
supportus@perlesmith.com (US)/ supportca@perlesmith.com (CA).
Too Long
Correct Correct
Too Short
CAUTION: Ensure the faceplate
[01A] or faceplate [01A] with
extender brackets [02] and [03] is
EQUALLY CENTERED on your TV
AND securely fastened in place.
Option A (For Flat Back TV)
Option B (For Round Back TV)
D1/E2/F2/F3
B
C1/C2/C3
06
04
05
(If needed)
D1/E1/F1
B
C1/C2
06
04
05
(If needed)
Alternate
Spacer
Setups
UP
Alternate
Spacer
Setups
To Next Page
