F5 Corpus Repairs - Seat
4.1.8.1 Removing armrest height adjustment mechanism

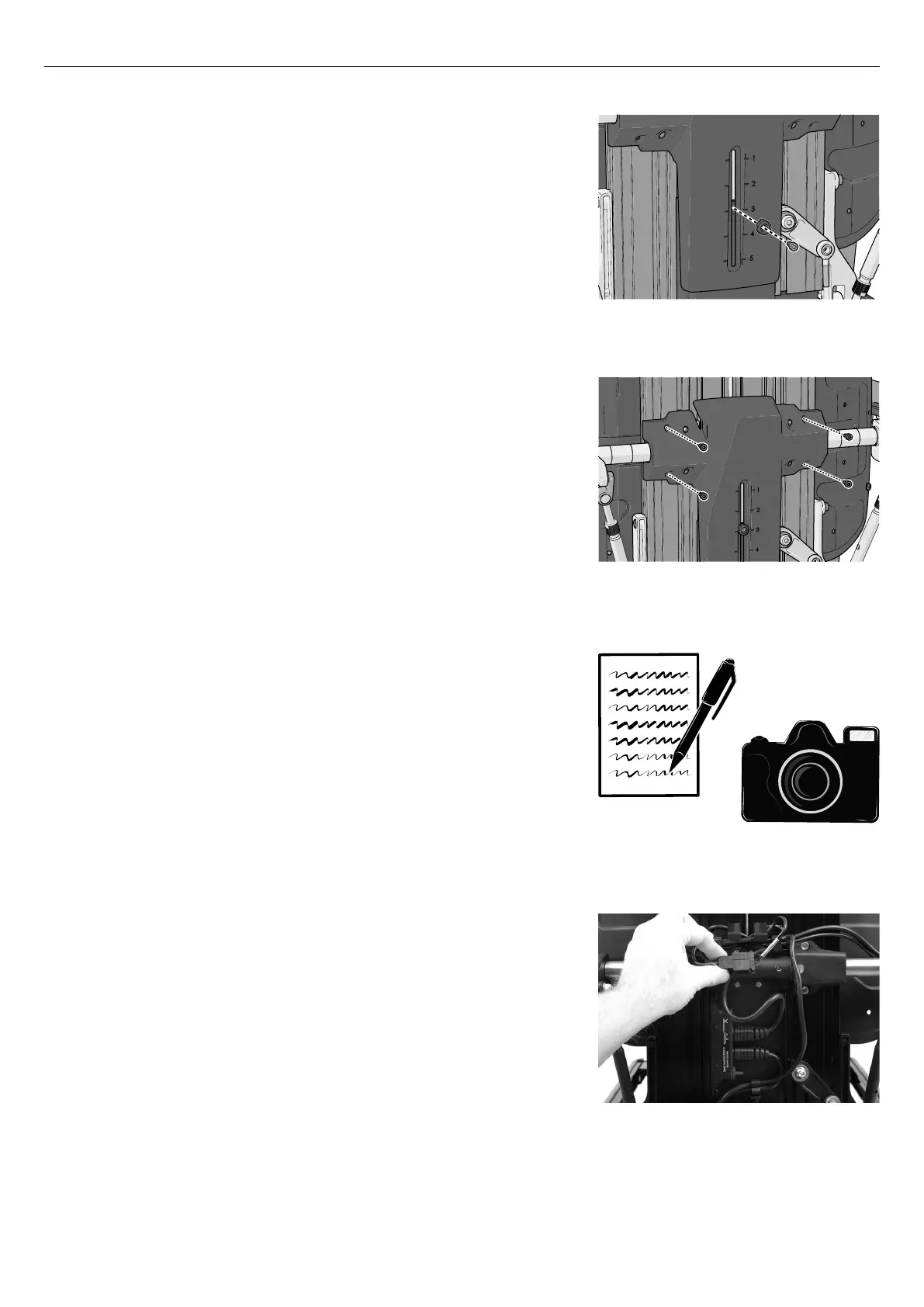

Figure 87. The plastic knob is attached with a screw.
1. Remove the backrest plates. For a detailed description, see
4.1.4
Backrest , Page 24.
2. Remove the screw securing the plastic knob.
3. Remove the plastic knob.
Figure 88. The locations of the four screws securing the
plastic cover.
4. Remove the four screws securing the plastic cover.
Figure 89. It is important that you document the cable
set up. Use a camera or make a drawing.
5. Document the cable set up behind the plastic cover.
Figure 90. Disconnect the R-net cable from the contact
block at back of the backrest.
6. Remove the BUS contacts from the contact block and divide the
cabling for the ICS switchbox at the contacts on the cabling.
