F5 Corpus Repairs - Seat

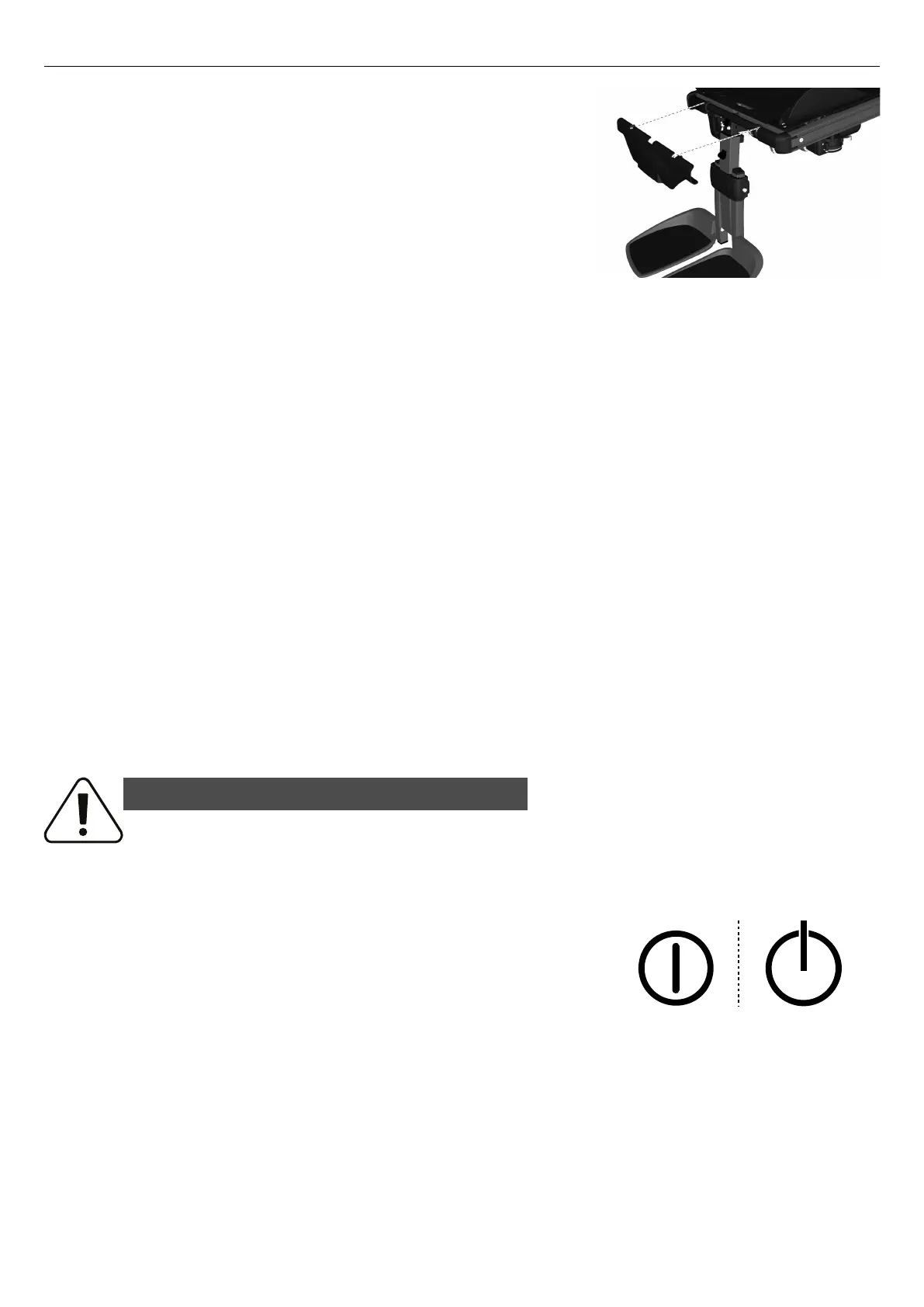

Figure 128. Assemble the leg rest's top cover by
carefully pressing its bracket into place on the leg rest's
fixing screws/spacers.
4. Assemble the leg rest's top cover by carefully pressing its bracket into
place on the leg rest's fixing screws/spacers.
4.1.11 Leg rest actuator
The powered leg rest exists in two different versions. What sets them
apart is the brand of the actuator. One version uses an LINAK LA28
actuator and the other one an actuator from REAC. The most apparent
difference is the motor location compared to the front. The motor on
LINAK LA28 is pointing forward, see figure 133, while the motor on
REAC points backwards, see figure 134. Their different brand marks is
also found on each of them.
For this task the following tools and grease are necessary:
• 1 Torque wrench.
• 1 Socket 17 mm.
• 1 Allen key 5 mm.
• 1 Allen key 8 mm.
• Grease: Lubetec Red Guard or MICROLUBE GL 261/GL 262.
4.1.11.1 Removing leg rest actuator
WARNING!
Risk of injury while working on the leg rest
Do not place any weight on the leg rest while working on it.
Figure 129. On/Off symbol depending on model.
1. Raise the seat to its highest position.
2. Switch off the main power switch on the control panel.
52
