Repairs - Chassis

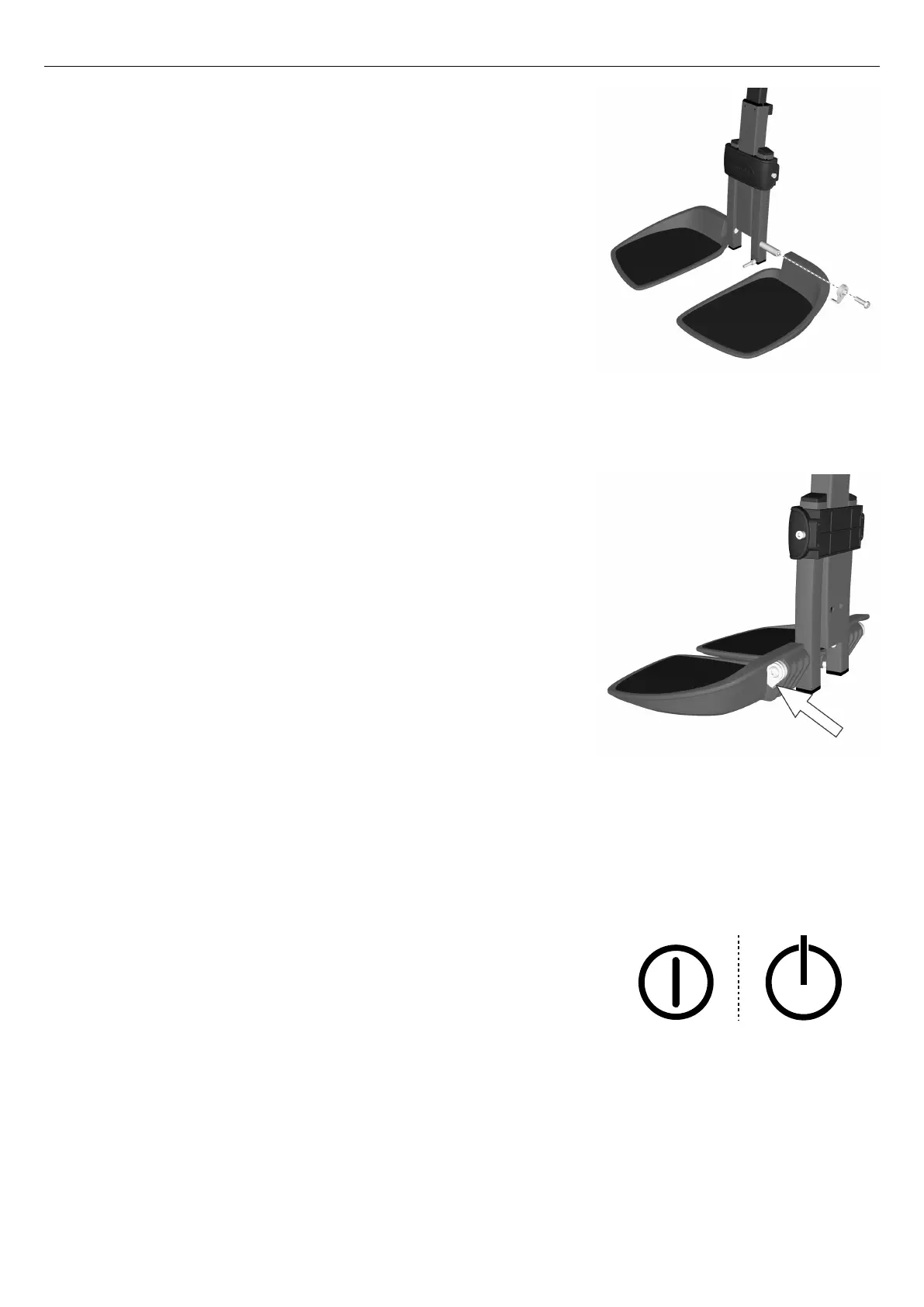

Figure 177. The footplate and its friction brake.
2. Remove the screw holding the footplate in place.
3. Remove the footplate friction brake by taking the parts off the shaft.
4. Remove the footplate by taking it off the shaft.
4.1.17.2 Mounting footplate
Figure 178. The friction brake's metal butt is in place in
the intended hole in the footplate.
1. Assemble the footplate by sliding it onto the shaft.
2. Assemble the footplate friction brake by sliding the parts onto the
shaft. Make sure that the metal butt is positioned in the intended
hole in the footplate.
3. Fit the screw that holds the footplate in place. Tighten the screw
using a torque wrench. Tightening torque: 17.7 lb.ft.
4.2 Chassis
4.2.1 Covers
4.2.1.1 Removing chassis covers
Figure 179. On/Off symbol depending on model.
1. If possible, on chassis with powered seat lift, raise the seat halfway
up, or on chassis with seat tilt only, raise the seat tilt halfway
backwards, to facilitate removal of the chassis top cover.
2. Switch off the main power switch on the control panel.
