F5 Corpus
Repairs - Chassis

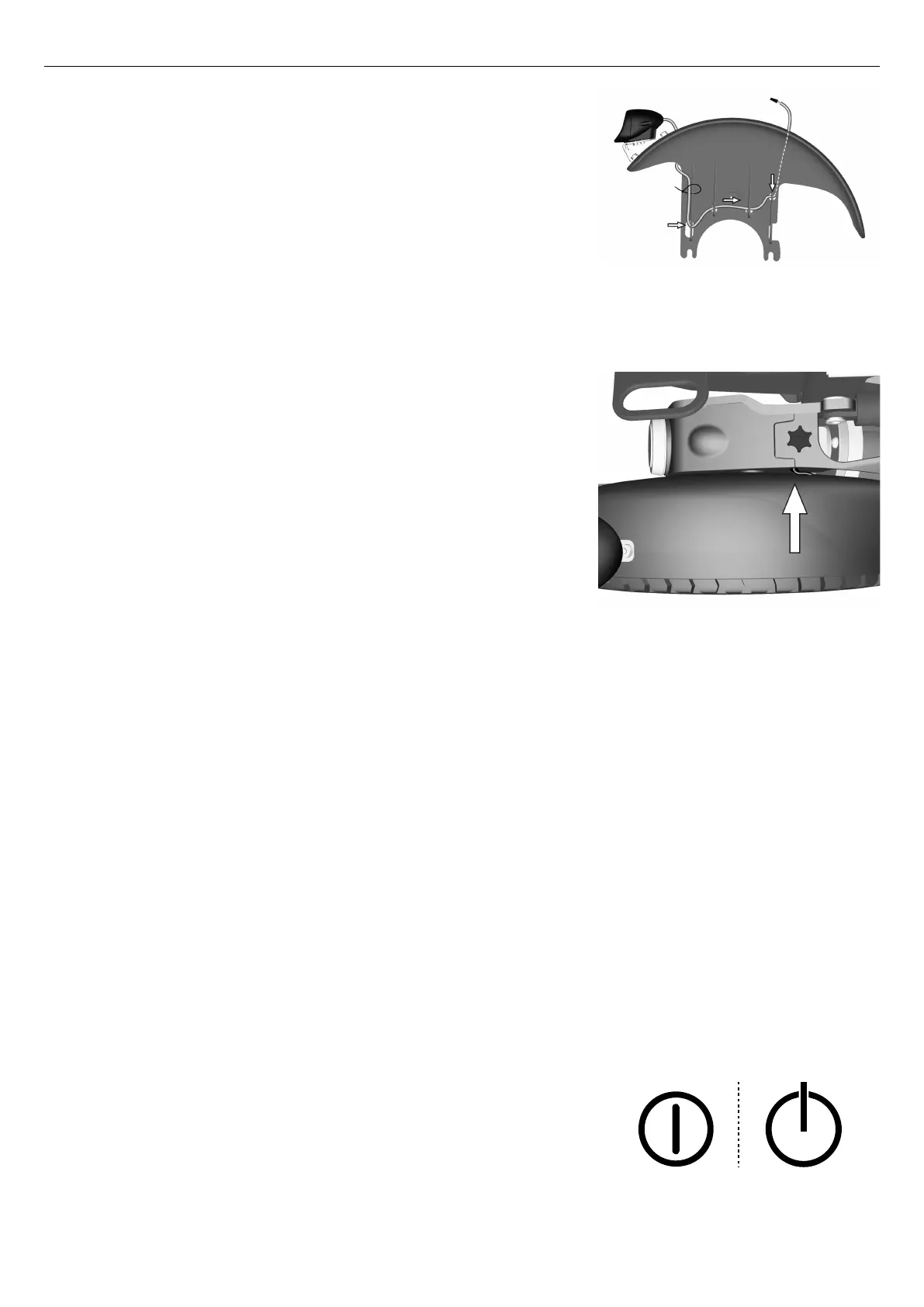

Figure 207. On wheelchairs with lights, make sure to
position the end of the lights cable up the hole through
the fender.
4. On wheelchairs with lights, make sure to position the end of the
lights cable up the hole through the fender.
Figure 208. Hide the connectors inside the drive gear
cover.
5. On wheelchairs with lights, connect the lights cable to the cable
positioned in the slot on top of the driver gear cover. After
connecting, push the cables and connectors into the slot, i.e. hide
the connectors inside the drive gear cover.
4.2.2 AP elevator
4.2.2.1 AP elevator
For this task the following tools are necessary:
• 1 Torque wrench.
• 1 Allen key 3 mm.
• 1 Allen key socket 6 mm.
• 1 Allen key socket 8 mm.
• 1 Ring wrench 17 mm.
• 1 Torx key T–20.
• Means of documentation (camera, pen and paper etc.).
Manual operation of AP elevator
If the AP elevator does not work normally because the batteries are
discharged or the adjustment devices are defective, the seat can be raised
or lowered manually.
Prepare manual operation
Figure 209. On/Off symbol depending on model.
1. Switch off the main power switch on the control panel.
76
