F5 Corpus
Repairs - Chassis

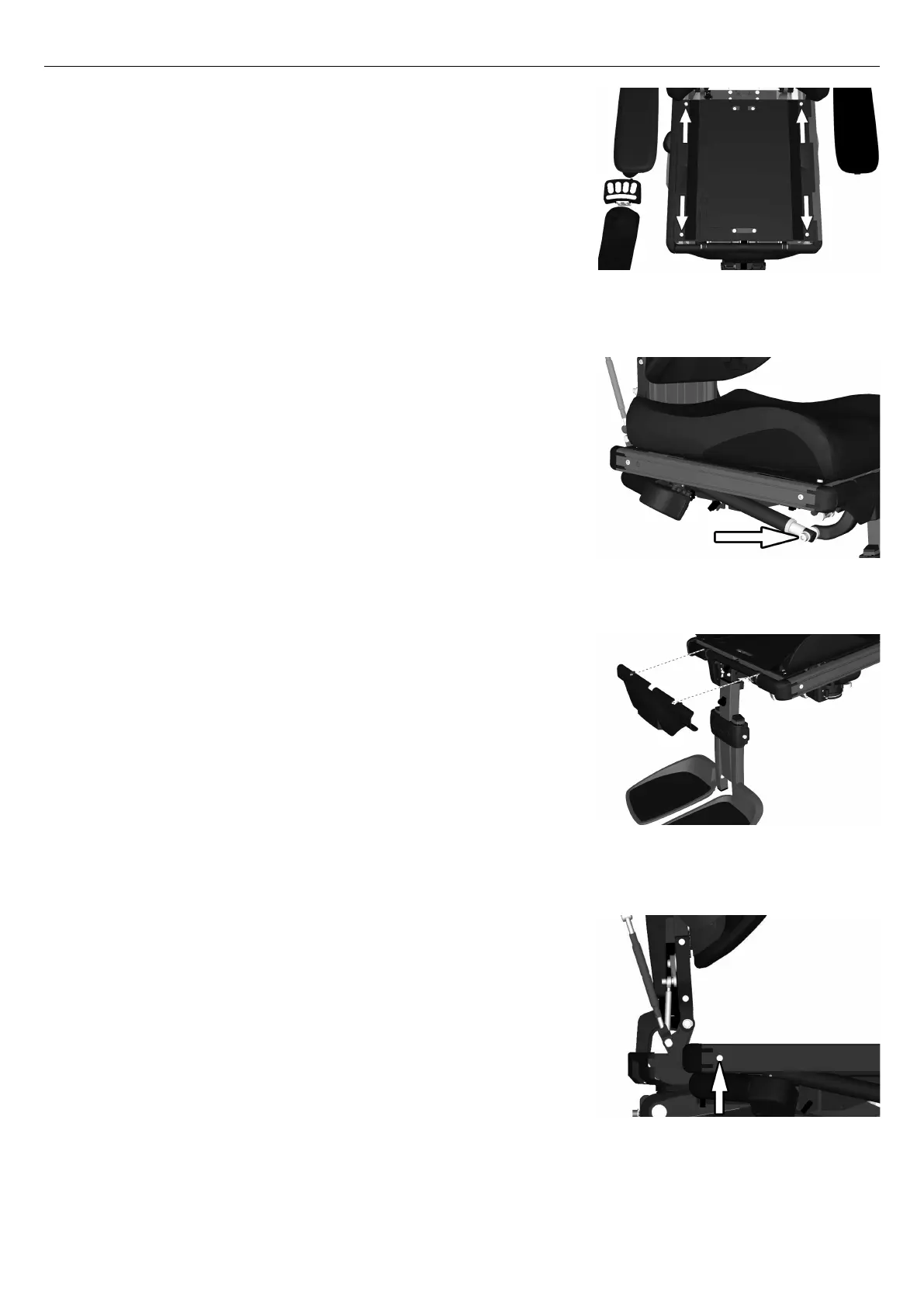

Figure 210. The seat plates are held in place by four
screws.
2. Remove the seat cushion by lifting it straight up.
3. Remove the seat plates, they are fitted with four screws at the back
and front edge.
Figure 211. The actuator attachment screw.
4. Remove the actuator from the leg rest, it is attached with one
screw, washer, spacer, washer and a lock nut.
Figure 212. Remove the leg rest's top cover by carefully
pulling it straight out.
5. Remove the leg rest's top cover by carefully pulling it straight out. If
the three attachment screws of the power motor of the seat tilt
mechanism are accessible, proceed to step 10.
Figure 213. The rear attachment screw of the UniTrack
rail.
6. Remove the rear attachment screw of the UniTrack rail on the left
and right hand side of the seat.
77
