F5 Corpus
Repairs - Chassis

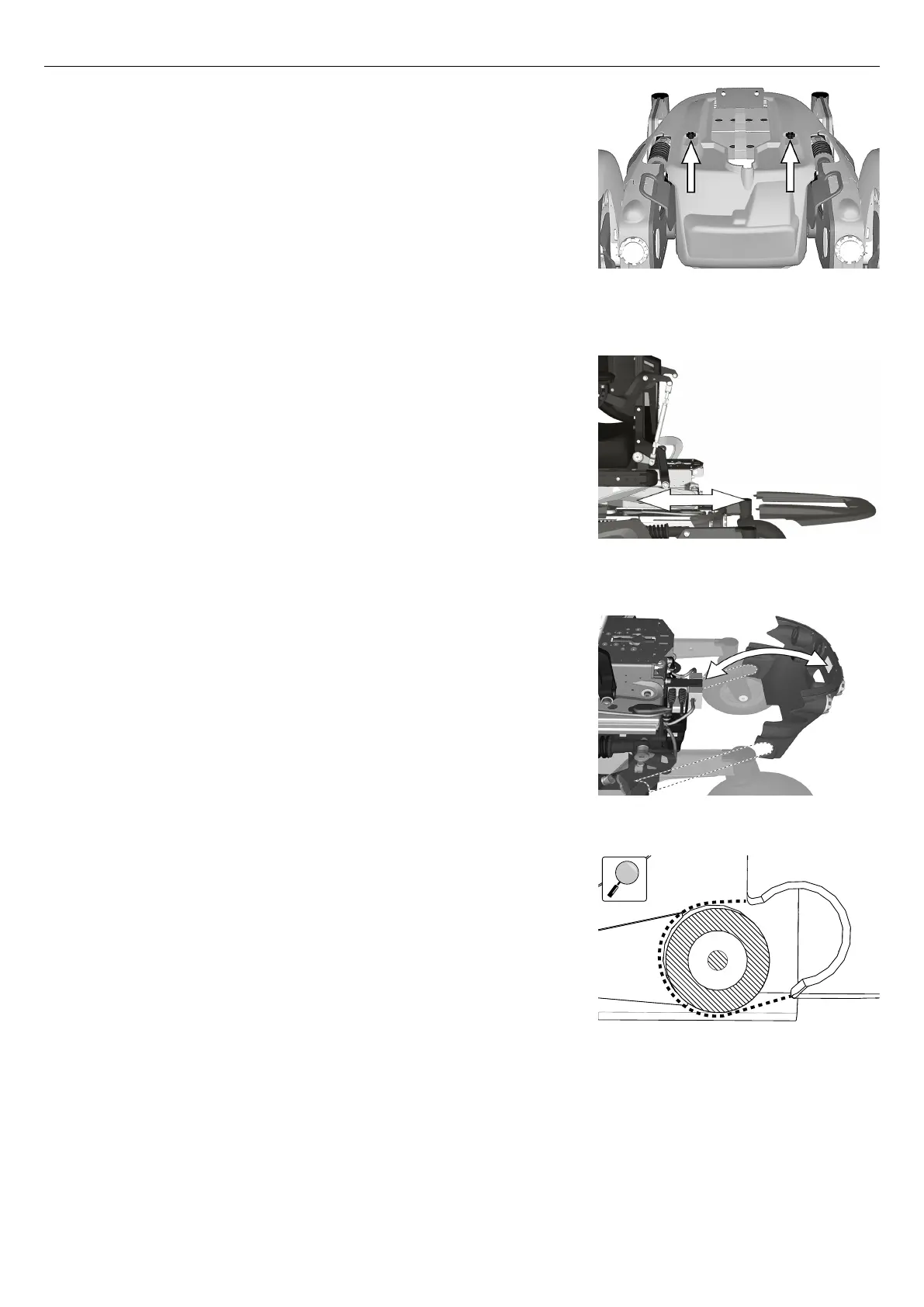

Figure 180. The chassis covers are fitted with two
knobs.
3. Remove the two knobs holding the chassis covers.
Figure 181. Top cover.
4. Pull the top chassis cover backwards off the chassis.
Figure 182. Rear cover.
Figure 183. An enlargement of the rear cover going
over the rear axle.
5. Pull the rear chassis cover off the chassis. Note that the cover is
mounted around the axles of the link arms. On chassis with lights,
disconnect the connector on the cable at the back marked “Rear
lights and turn signals”.
Pull the rear chassis cover off the chassis. Note that the cover is
mounted around the axles of the swing arms. On chassis with lights,
disconnect the connector on the cable at the back marked “Rear
lights and turn signals”.
68
