BRAKE SAFETY AND EMERGENCY PART 7: STARTING & OPERATING THE VEHICLE
– 102 – Y53-6007 (R10/06)

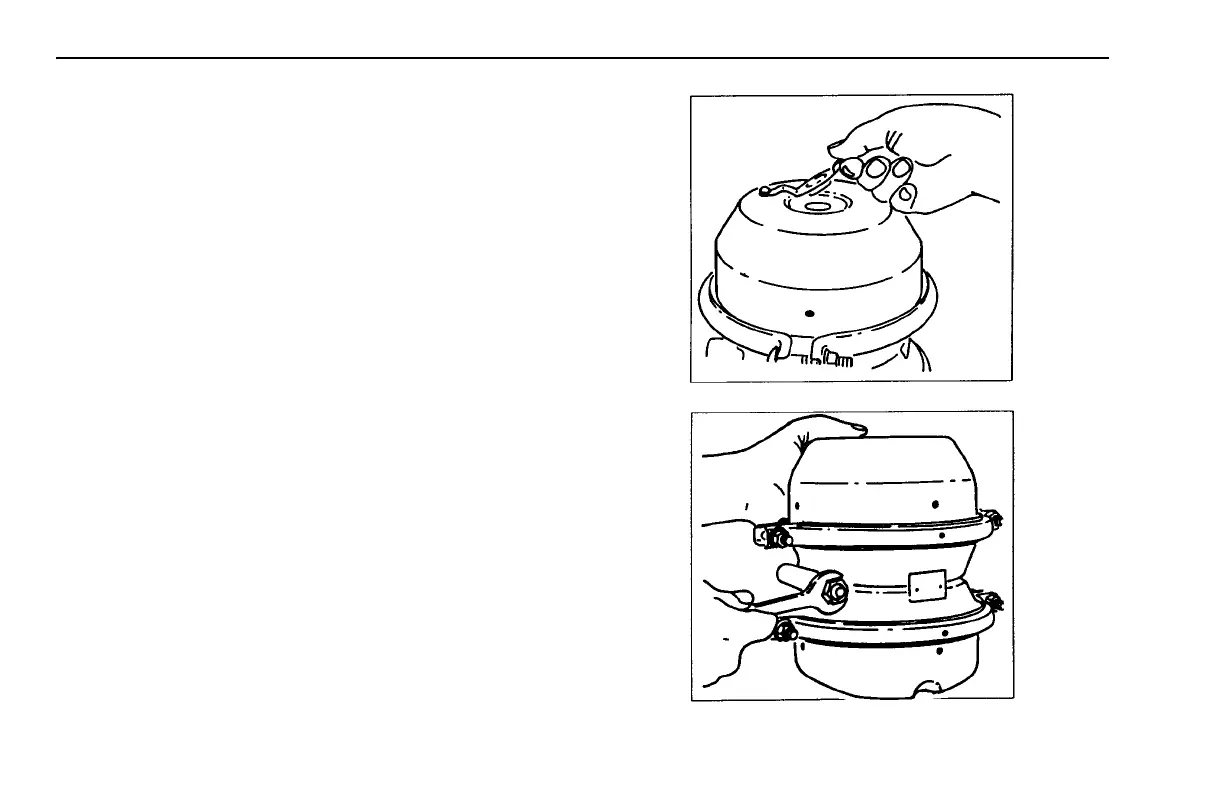

To release spring brakes manually
1. Remove the cap from the spring chamber.
2. Remove the release stud assembly from the side
pocket; remove the release nut and washer from the
release stud.
:
02936A
02936B
