Peterbilt 387 - Left Side

YOUR INSTRUMENT PANEL PART 4: CONTROLS AND DISPLAYS
– 16 – Y53-6007 (R10/06)

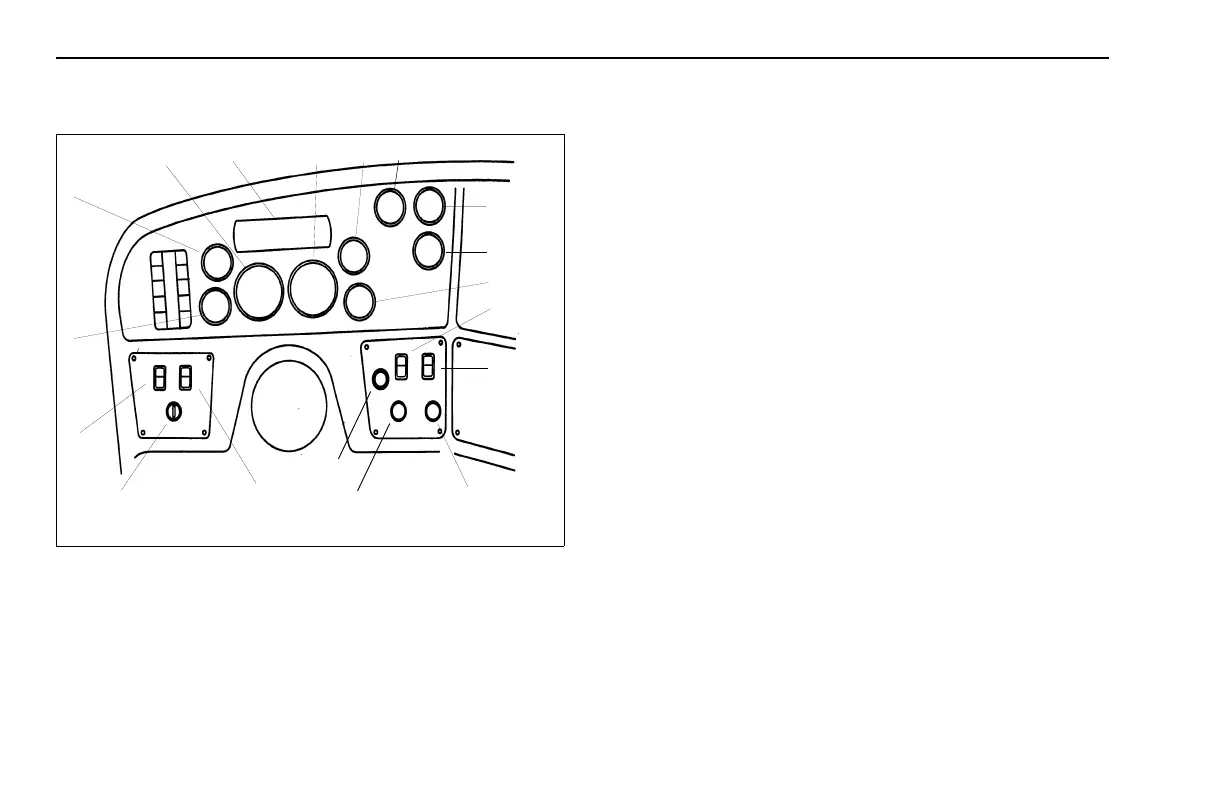

Typical Cab Instruments and Controls
1
2
3
4
5
6
7
8
9
1
6
0
2
9
7
1
B
1
7
1
8
1
5
1
2
1
0
1
3
1
4
1
1
LEFT SIDE
1. ID/Clearance Lamps Switch 10. Air Cleaner Restriction
2. Ignition Switch 11. Primary Air Pressure
3. Headlamps Switch 12. Secondary Air Pressure
4. Voltmeter 13. Fuel
5. Oil Pressure 14. SMC Select/Reset Switch
6. Tachometer 15. Dome Light Switch
7. Warning Light Bar 16.
Windshield Wiper/Washer
8. Speedometer-Message 17. Panel Dimmer
Center (SMC)
9. Water Temperature 18. Cigarette Lighter
