GAUGES PART 4: CONTROLS AND DISPLAYS
– 40 – Y53-6007 (R10/06)

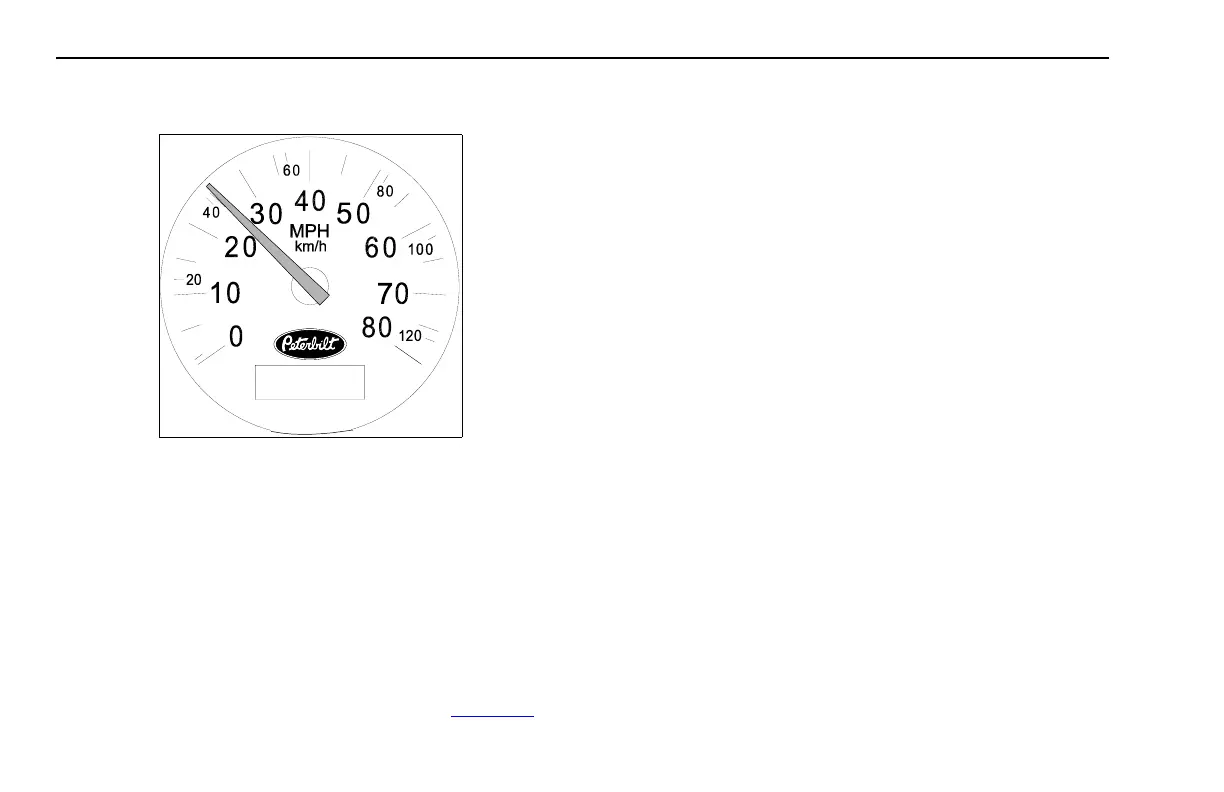

Speedometer-Message Center (SMC)
11243
The speedometer-message center (SMC) is a combina-
tion of a speedometer and a message center. The speed-
ometer indicates your vehicle’s speed in both miles and
kilometers per hour. The message center contains a 7-
character, segmented LCD screen that can display the fol
-
lowing items:
• Odometer • Hourmeter
• Trip 1 odometer • Clock
• Trip 2 odometer • Clock alarm
• Warning and Diagnostic messages (see page 117)
A Select/Reset switch on the right side of the dash con-
trols the display.
The odometer is normally displayed on the screen. To
choose another function, press and release the Select
switch until it appears.
• The odometer reads miles & tenths; e.g., 123456.7
• The Trip 1 odometer reads miles & tenths; e.g.,
1234.5T1
• The Trip 2 odometer reads miles & tenths; e.g.,
1234.5T2
• The hourmeter reads in hours; e.g., 12345HR
• The clock reads in hours & minutes, with A.M. or
P.M.indicated at the end; e.g., _ _ 12:34A (or P).
• If the clock alarm is set and activated, the display will
appear as
* _ 12:34A (or P).
• The clock alarm reads in hours & minutes, with A.M.
or P.M. indicated as shown; e.g., AL12:34A (or P).
To set or reset a function, follow the procedures below.
