LOCATION OF COMPONENTS
TRAINING MANUAL: JET FORCE Page : 40/43
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

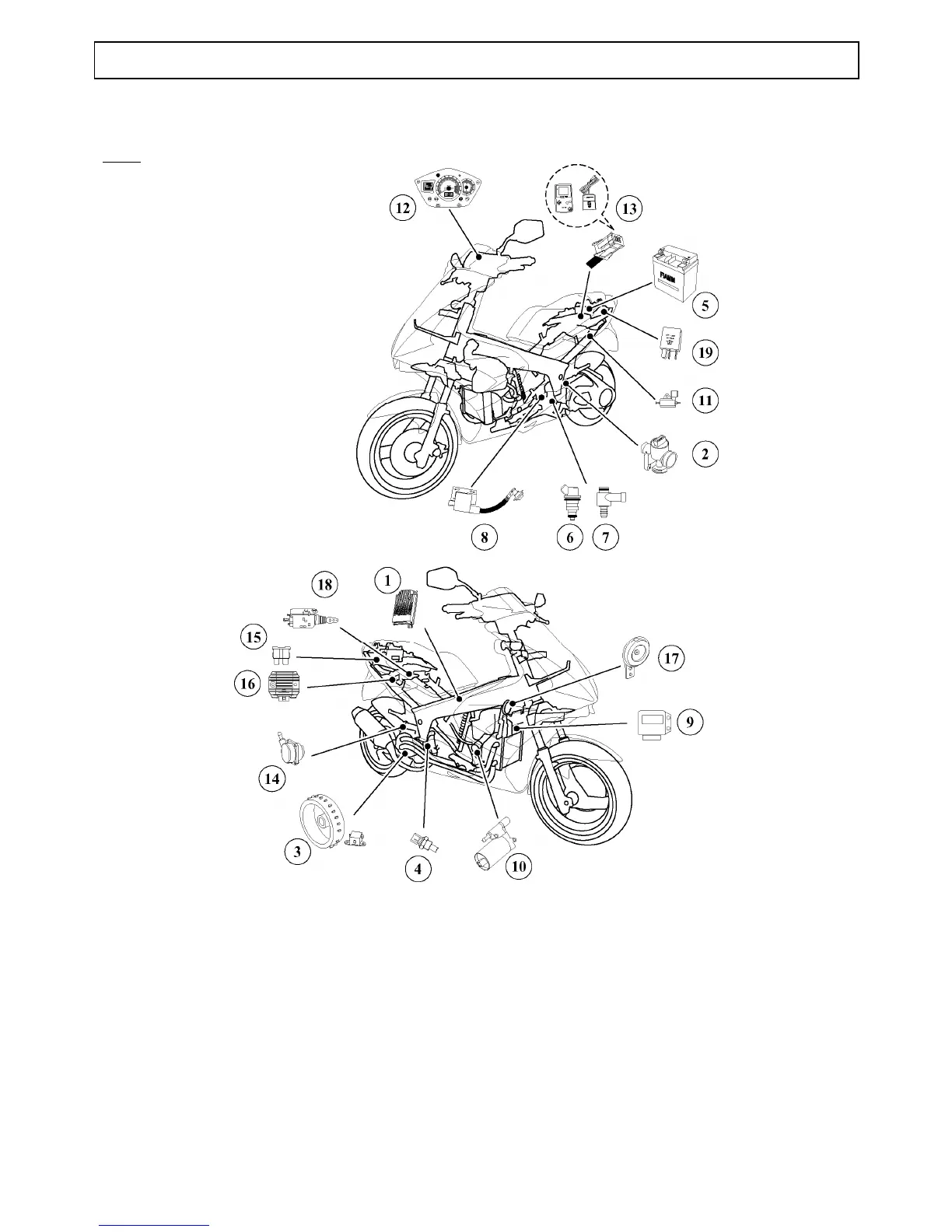

LOCATION OF COMPONENTS
50 cc
1. Injection ECU
2. Throttle unit
3. Engine position and speed sensor
4. Temperature sensor
5. Battery
6. Fuel injector
7. Air injector
8. Ignition coil
9. Immobiliser module
10. Fuel pump
11. Oil pump
12. Diagnostic light
13. Diagnostic plug
14. Air compressor
15. Fuses
16. Voltage regulator
17. Horn
18. Saddle lock
19. Starter / lighting relay
