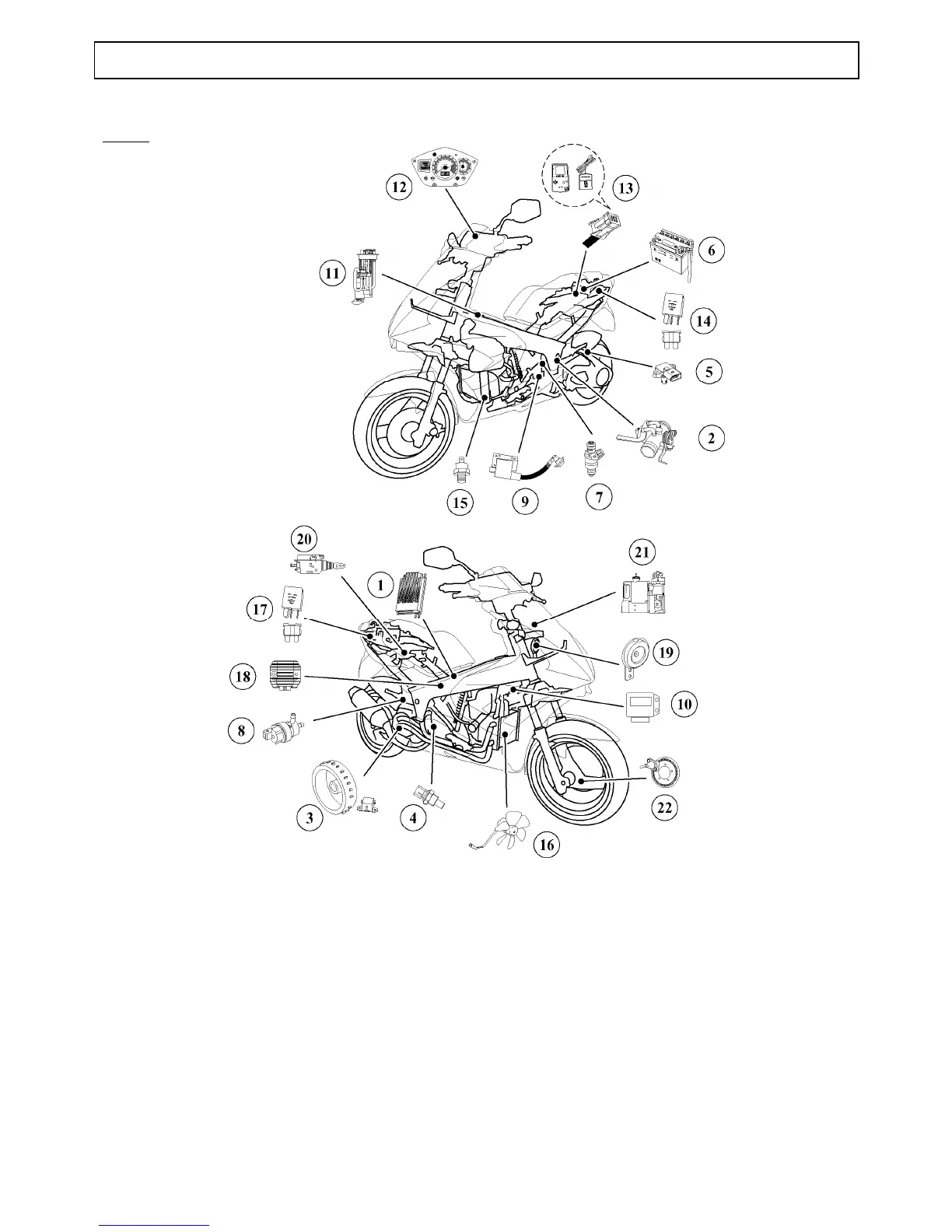

LOCATION OF COMPONENTS
TRAINING MANUAL: JET FORCE Page : 41/43
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
125 cc
1. Injection ECU
2. Throttle unit
3. Engine position and speed sensor
4. Temperature sensor
5. Air pressure and air temperature sensor
6. Battery
7. Fuel injector
8. Idle control valve
9. Ignition coil
10. Immobiliser module
11. Fuel pump
12. Diagnostic light
13. Diagnostic plug
14. Fuel pump relay/ABS relay/light
relay/Fuse 25A
15. Heat switch
16. Motor-driven fan
17. Fuse 15A/starter relay
18. Voltage regulator
19. Horn
20. Saddle lock
21. ABS/PBS module
22. Machine speed sensor
