INJECTION SYSTEMS / TSDI IGNITION
Introduction
Of the throttle angle / engine speed type, the SYNERJECT system was developed for the following
applications:
Monopoint sequential injection
Static timing
The system basic principle consists in measuring the engine speed and load ( throttle opening ) in order to
determine the optimum quantity of fuel injected
This system is used on the JET FORCE 50 scooter and requires NO ADJUSTMENT
(Ditto Looxor and Elystar 50 cc).

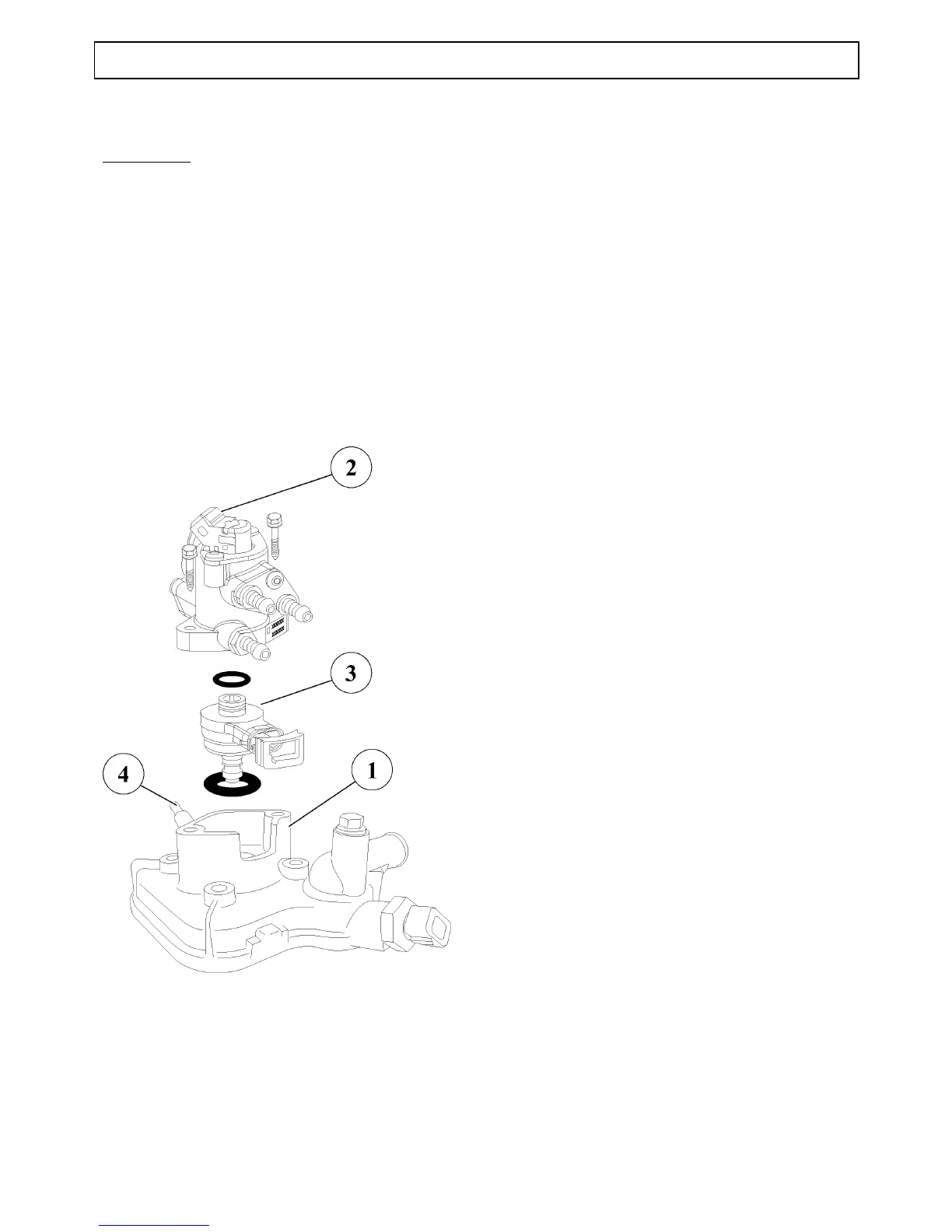

1. Cylinder head
2. Petrol injector
3. Air injector
4. Spark plug
