Installation and commissioning
8 - 6
8.02 Connecting the plug-in connections and earth cables

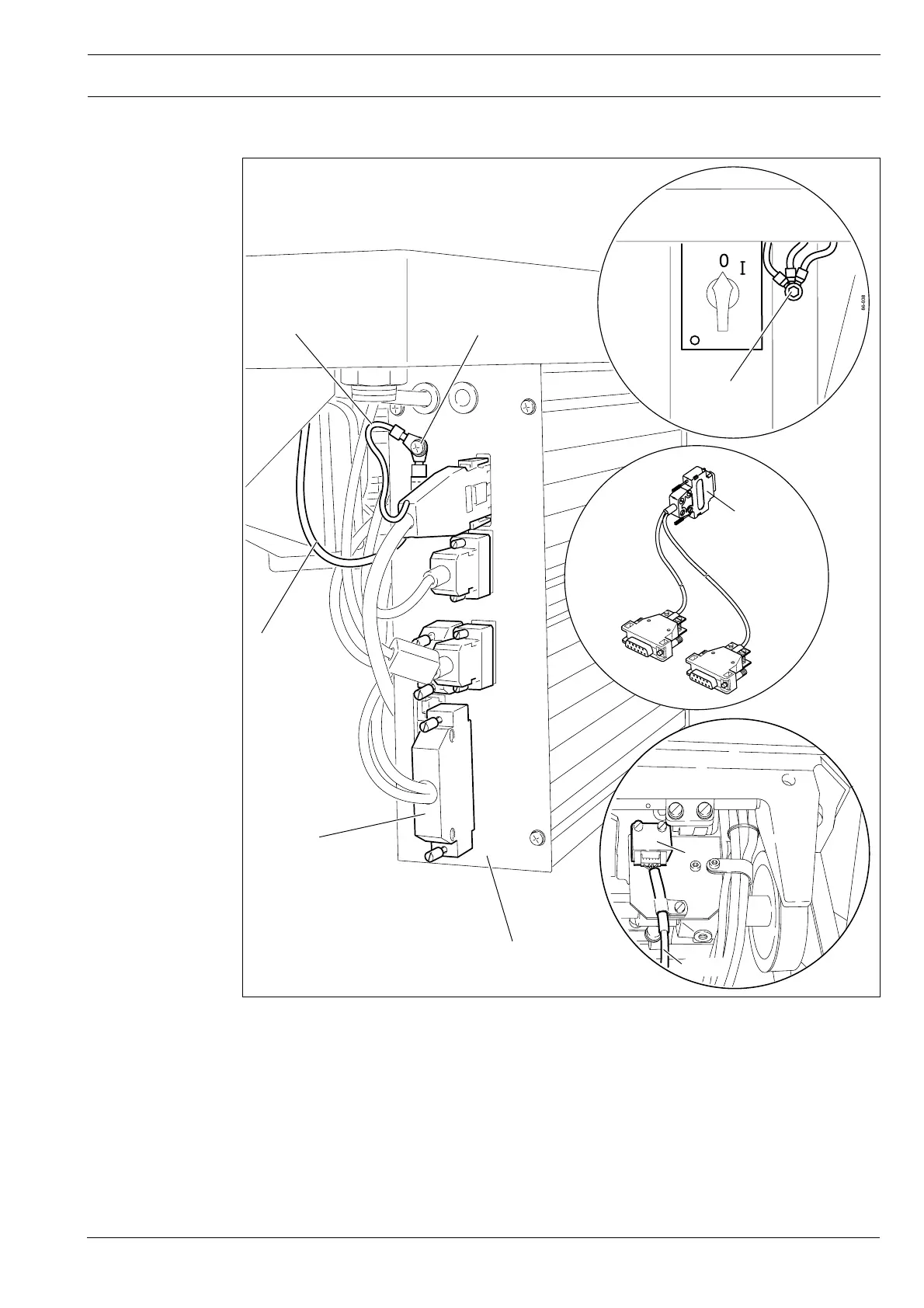

Fig. 8 - 09
● Plug adapter cable 1 into control box 2.
● Plug the cable coming from the machine to adapter cable 1 as marked.
● Plug the cable A14 coming from adapter 1 to the sewing head recognition unit 4.
● Insert plug 5 from the adapter cable to bush X 2.
● Connect the motor to the "motor" plug and the synchronizer to the "external" plug.
● Screw the earth cable from the sewing head and the main switch to earth point A.
● Connect earth point A to earth point B with earth cable 6.
● Screw the earth cable 7 from the motor to earth point B.
A
7
2
6
B
1
4
X 2
A 14
5
Motor
Extern
