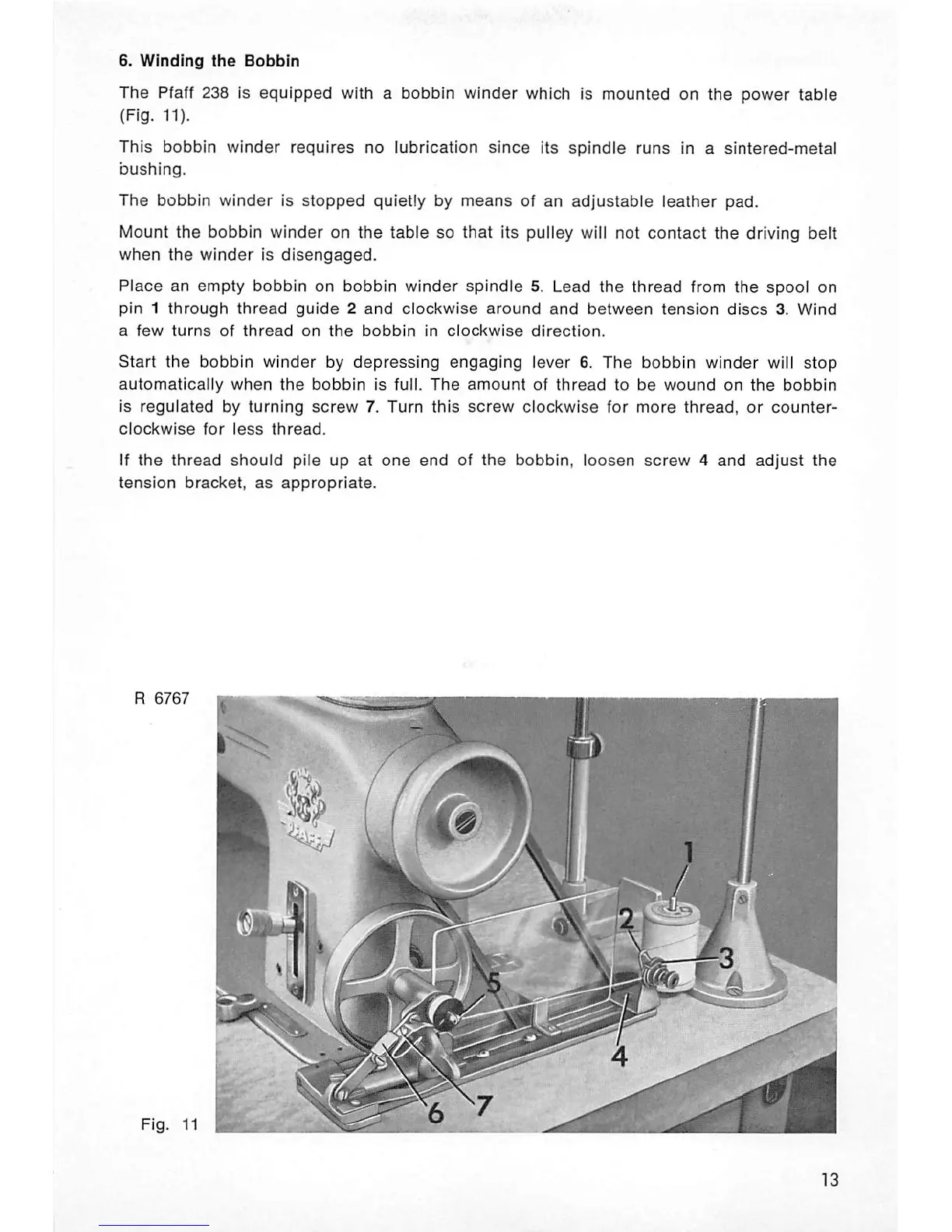

6. Winding the Bobbin
The Pfaff 238 is equipped with a bobbin winder which is mounted on the power table
(Fig. 11).
This bobbin winder requires no lubrication since its spindle runs in a sintered-metal
bushing.
The bobbin winder is stopped quietly by means of an adjustable leather pad.
Mount the bobbin winder on the table so that its pulley will not contact the driving belt
when the winder is disengaged.
Place an empty bobbin on bobbin winder spindle 5. Lead the thread from the spool on
pin 1 through thread guide 2 and clockwise around and between tension discs 3. Wind
a few turns of thread on the bobbin in clockwise direction.
Start the bobbin winder by depressing engaging lever 6. The bobbin winder will stop
automatically when the bobbin is full. The amount of thread to be wound on the bobbin
is regulated by turning screw 7. Turn this screw clockwise for more thread, or counter
clockwise for less thread.
If the thread should pile up at one end of the bobbin, loosen screw 4 and adjust the
tension bracket, as appropriate.
R 6767
m
». IT
Fig. 11
^^7
