Pfaff 238-0 User Manual

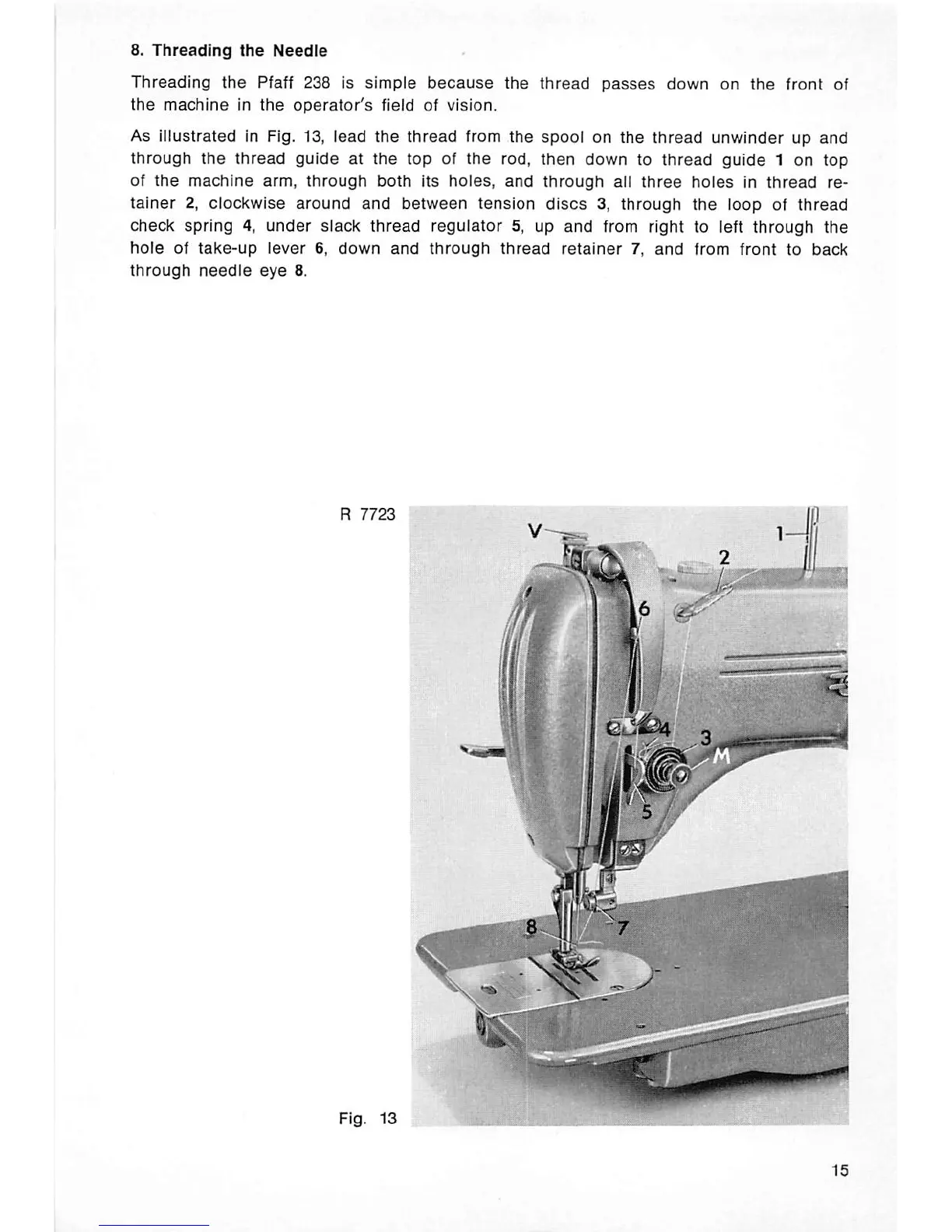

8. Threading the Needle
Threading the Pfaff 238 Is simple because the thread passes down on the front of
the machine in the operator's field of vision.
As iiiustrated in Fig. 13, lead the thread from the spool on the thread unwinder up and
through the thread guide at the top of the rod, then down to thread guide 1 on top
of the machine arm, through both its holes, and through all three holes in thread re
tainer 2, clockwise around and between tension discs 3, through the loop of thread
check spring 4, under slack thread regulator 5, up and from right to left through the
hole of take-up lever 6, down and through thread retainer 7, and from front to back
through needle eye 8.
R 7723
Fig. 13
From the library of: Superior Sewing Machine & Supply LLC
